Description

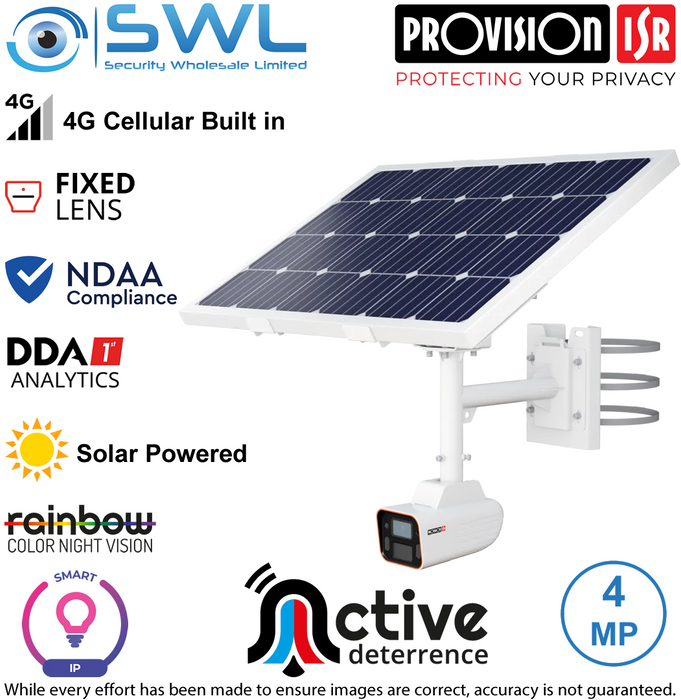

Efficiently harnessing solar energy, Provision-ISR's DDA Solar Cellular Camera ensures uninterrupted surveillance with minimal environmental impact. This 4MP bullet camera features a 3.6mm fixed lens, offers affordability, reliability, high performance and is ideal for outdoor short-distance monitoring up to 20m. With 'Active Deterrence' capabilities, it respondes to unwelcome intrusions using its built-in speaker and vibrant visual cues (red and blue lights). Equipped with super light-sensitive sensors, it delivers vivid color images day and night. Integrated lighting kicks in when ambient light is insufficient, ensuring continuous full-colour imaging. Footage from analytic events can be stored locally or directed to a remote Provision-ISR NVR using a tried and tested 'Auto Report' capability.
Solar Panel & Bracket Features:
* Bracket: 3-Axis Bracket Angle Adjustment: Pan: 0°~360°; Tilt:-60°~10°* Dimensions: 85 x 610 x 620mm
* Gross Weight: 20.65Kg with LFP Battery installed
* Pole Bracket: Supplied with 3x Stainless Steel bands, max 13cm internal dia.
* Power Consumption: < 5W Lower Power Mode: 3.5W (4G working)
* Power Supply: 12 VDC ± 25% 60 W ±2Watt On Solar panels
* Battery Type: LFP battery (lithium iron phosphate battery)
* Battery Capacity: 24Ah
* Battery Voltage:12.8V
* Battery Operating Temperature: Charging: -20°C to 45°C Discharging: -20°C to 60°C
* Battery Life: More than 2000 cycles
Camera Features:
* NDAA Compliant Camera* Resolution: 1/ 1.08" CMOS 4MP
* Lens / FOV: 3.6mm, 92° (H)
* D(O)RI :See Lens information on specification sheet
* Image Enhancement: True WDR (120dB), BLC, HLC, ROI
* Video Format: H.265+, H.265/ H.264+, H.264 / MJPEG
* Min Illumination: Day: 0.000625lux / Night: 0.003lux (@F1.0, AGC On) 0lux with LED on
* Max White Light: 20m (Full power) or 10m + Red/ Blue Strobe (2 x Bright White LED)
* Analytic Features: DDA1 Object Classification (Sterile Area, Line Crossing), Tamper
* Audio - Built in Microphone & Speaker
* Local Storage: Micro SD Card (Up to 256Gb) 46039
* Remote Storage: Send analytic event footage to a remote Provision-ISR NVR via the cell network using Auto Report
* ONVIF: Profiles T/ S/ G
* Power Input: DC socket solar panel
* Ingress Rating: Weather proof, IP67
* Remote Monitoring: IE Browsing, Chrome/Edge/Safari/Firefox
* Ossia VMS Software, Provision Cam2 Mobile App.
• Mobile Communication: 4G
- LTE-TDD: Band 38/39/40/41
- LTE-FDD: Band 1/2/3/4/5/7/8/12/13/18/19/20/25/26/28
- WCDMA: Band 1/5/8
- GSM: Band 2/3/5/8
Please Note:
1. Due to the size, weight and nature* of the components, your order will need to be transported by a 'bulk' carrier. Prices vary. Please ask your Sales Rep or our AKL logistics team to provide you with a door-to-door freight price.2. * Large Lithium batteries are prohibited as 'dangerous goods' by most local courier services.
