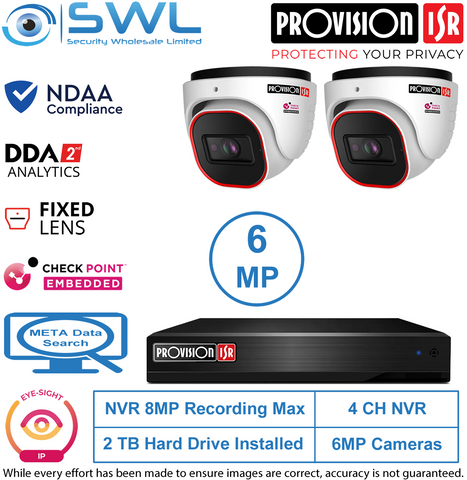

Provision-ISR 4CH NVR KIT: With 2x 6MP Eye-Sight Turrets 2.8mm 2Tb HDD Inc.
Stock Code:
33584
POA
Description
Kit Includes:
2 x Provision-ISR DI-360IPEN-28-V4: Eye-Sight 6MP NDAA Turrets 3316811 x Provision-ISR NVR8-4100PN-V2: 4CH 8MP NVR 33506
1 x Hard Drive 3.5" 2Tb Installed 46073
NVR Features:
* Embedded Cyber Protection: Quantum Iot Nano agent by Check Point™* NDAA: Compliant NVR
* IP Video Inputs: 4 Channels (PoE) over Network
* Onboard PoE: 4 Ports 12W average, Max Budget 48W
* Bandwidth: Incoming & Outgoing both @ 80Mbps
* Real-Time Recording: 4CH @ 8MP
* Storage: 1x SATA HDD bay. 2Tb installed for you.
* Video Output: HDMI – 4K, VGA
* Audio: Input 1 CH RCA (Linear) + IPC inputs
* Audio: Output 1 CH RCA + IPC Outputs
* Analytic Support: Up to 2 CH DDA1 or up to 2 CH Face Detector or combinations.
* Search Mode: DDA Object, Smart Search, LPR, Time-Slice, Time, Event
* Alarm In/ Out: Add Provision-ISR IO-1606 USB Input & Output Module: 33501
* ONVIF: Full device support Profiles T/G, ONVIF version 20.12
* Network: 1 x RJ-45: 1000/100/10Mbps self-adaptive Ethernet interface
• Power Supply: DC 48V/1.36A
* Dimensions: W300 x D249 x H45mm
Monitor & UPS Options:
* Provision-ISR 24" Ultra-Thin Monitor: 50008* EATON 5E UPS 700VA/360W, 2x NZ OUTLETS 13071
* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
Camera Features:
* Embedded Cyber Protection: Quantum Iot Nano Agent by Check Point™* NDAA: Compliant Camera
* Resolution: 1/2.9" CMOS 6MP (16:9)
* Lens / FOV: 2.8mm Lens 104° (H)
* D(O)RI: See specification sheet
* Image Enhancement: True WDR (120dB), BLC, HLC, ROI
* Video Format: H.265+, H.265, H.264+, H.264, MJPEG**
* Min Illumination: Day: 0.1lux / Night: 0.005lux (F1.6, AGC On) 0lux with IR on
* Max IR Distance: 20m (1 High-Power IR LED)
* Analytic Features 1: Object Detection (Sterile Area, Line Crossing, Object Counting),
* Analytic Features 2: Face Detection (10 Faces per frame), Heat Map.
* Audio: Built-in Microphone, Two--way Audio. Audio Input/ Output
* ONVIF: Profiles T / S / G
* Storage: Micro SD Card (Up to 256Gb) 46039
* Power: DC12V/~450mA / PoE/~7W
* Ingress Rating: Water Proof: IP67. Metal camera ball and shroud.
* Dimensions: Øx 97mm × 82.6mm
Accessories:
* IP66 Back Box: PR-JB12IP66 34074* Wall Bracket: PR-WB-A 34078
* Pole Mount: PR-B50PB 34032 and PR-WB12 34083
* Ceiling Mount: PR-CB12 34082 and PR-B10EX extension sections 34062
