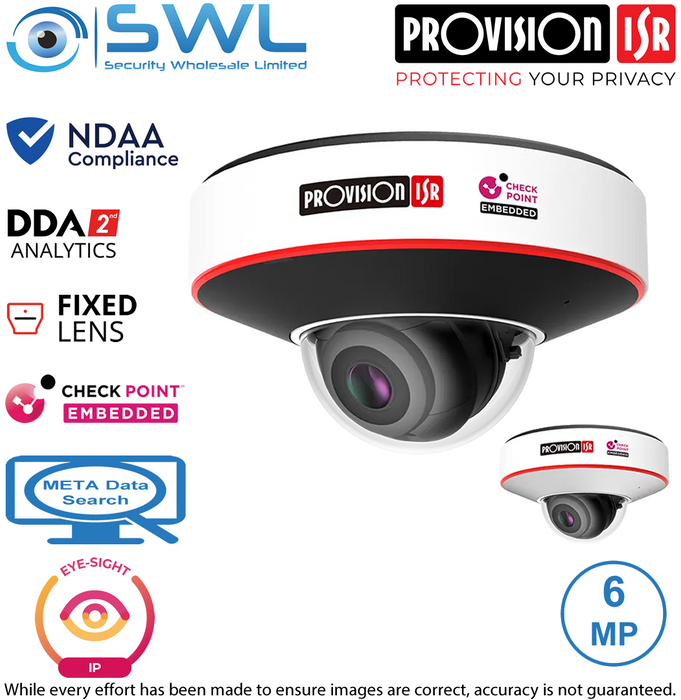

Provision-ISR DMA-360IPEN-28-V5:Eye-Sight 6MP NDAA MiniDome WDR IR20m IP67 2.8mm
Stock Code:
331682
POA
Description
This camera has a capable 2.8mm fixed lens and protective dome. With an 11cm diameter, this 6MP Mini-Dome camera is designed for short-distance surveillance in indoor and outdoor scenarios. Vandal-proof IK10 protection features make it hard to sabotage. The camera offers broad possibilities for analytics, from Face Detection to the outstanding DDA Analytics (Detect-Distinguish-Alert) and DDA2, which combined with an appropriate NVR, can use 'metadata' to perform object recognition, object counting, and investigate specifics such as age, colour, gender, vehicle brand and much more. Check Point™ Quantum IoT Nano agent is integrated into this model.
Features:
* Embedded Cyber Protection: Quantum Iot Nano agent by Check Point™* NDAA: Compliant camera
* Sensor: 1/3" CMOS (16:9) 6MP
* Lens: 2.8mm -100° (H)
* D(O)RI: See specification sheet
* Compression: H.265 / H.264 / H.265+ / H.264+ / MJPEG
* True Day & Night – ICR
* Image Enhancement: True WDR (120dB), BLC, HLC, ROI
* Image Orientation: Mirror/ Flip, Corridor Mode
* Minimum Illumination: 0.008lux (@F1.6, AGC on) 0lux with IR on
* Illumination: 20m,actual (2 High-Power IR LEDs)
* Analytics DDA1: (Object Detection) Sterile Area, Line Crossing, Object Counting (Line)
* Analytics DDA1: Object Counting (Area), Face Detection (10 Faces a frame), Heat Map
* Analytics DDA2: (Advanced Object Classification) Age, gender, vehicle brand, colour
* Audio: Built-in Microphone only. Audio Input/ Output
* SD Card: Event/Schedule Record (Up to 256GB) 46039
* Alarm: Alarm in + Alarm out
* ONVIF: Profiles T/ S/ G
* Power: DC12V/~450mA / PoE/~6.5W
* Ingress rating: Water Proof, IP67. Vandal resistance, IK10
* Dimensions: Ø110.4mm x 62mm
Camera Bracket Options:
* 34022 PR-B10BJ Back Box* 34078 Compact Wall Mount Bracket
* 34083 Right Angle Wall Mount Bracket ** Requires 34022 Back Box **
* 34082 Ceiling Mount Bracket ** Requires 34022 Back Box **
