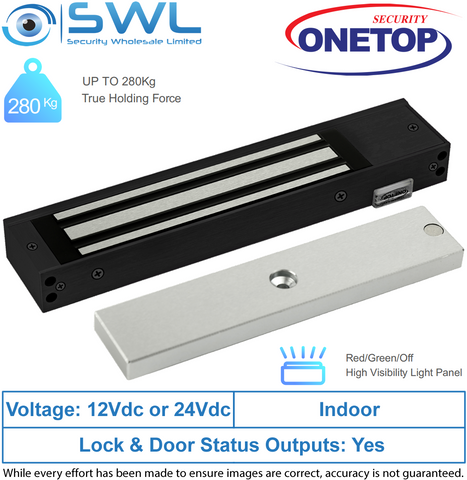

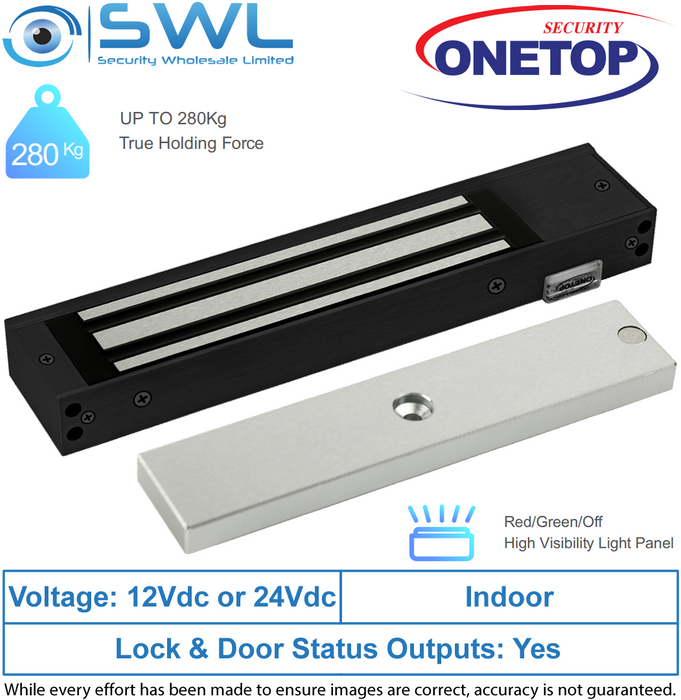

ONETOP EM3500 DSS: Single Door S/Mount Mag Lock 12/24VDC 280Kg BLACK
Stock Code:
58002BLK
POA
Description
The EM3500 single surface mount electromagnetic lock operates on 12 or 24 VDC setting with a world wide patented highly visible high luminosity Light Panel with remote monitoring of Lock status sensor (LSS) and Door status sensor (DSS). ONETOP electromagnetic locks are all high quality plated to operate over a million operations and
release to unlock instantly when power is off without any residual magnetism.
Features:
* Holding Force: Up to 280Kg* Fail Safe: Power- to-lock
* Surface Finish: Anodized Aluminium housing. BLACK
* Lock Body Dimension: L 238 x W 48 x H 25mm
* Armature Plate Dimension: L 185 x W 38 x H 12mm
* Lock Operating Voltage: 2/ 24VDC ±10%
* Lock Operating Current: 530mA /12VDC; 260mA /24VDC
* Lock Status Output (LSS) NO/NC/COM, Max 24VDC; Max 2A
* Door Status Output (DSS) NO/COM, Max 24VDC; Max 0.2A
* Operating Temp: 10°C ~ 60°C
* Light Panel: Red/ Green/ Off indicating the status
* Weight: 2.0Kg
* Expected Usage Lifespan: Over 1 million cycles
* Compliance: CE, RoHs, EN 1634-1:2014/ BS EN 1634-1:2014, 4 hours fire resistance.
A 5mm 'spacer' plate is available for this lock: 58015
