Provision-ISR NVR8-16400AN(1U) V2 16CH SPOT MONITOR or NVR with NO PoE NDAA
Stock Code:
33558
POA
Warranty Details:
3 Years Return to Base
Description

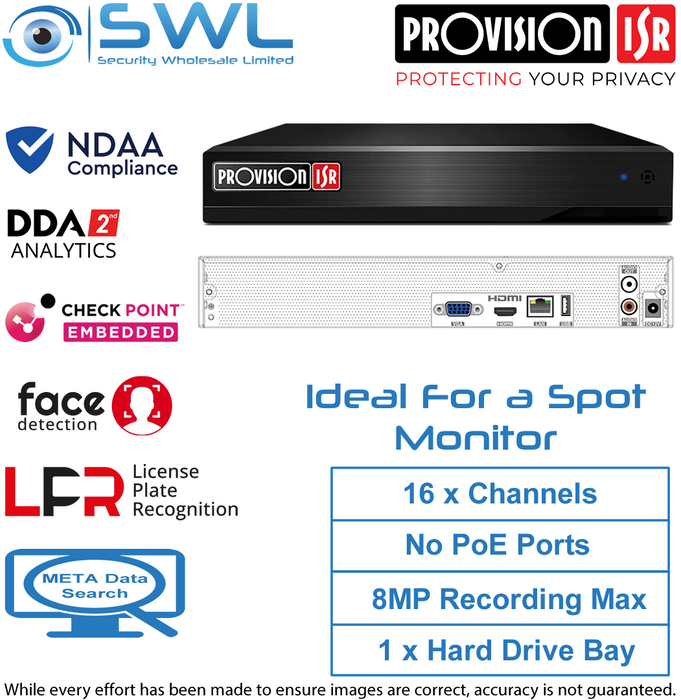

16MP 16CH NVR embedded with Check Point™ cyber protection, complying to NDAA requirements. This NVR is without embedded PoE in order to provide flexibility; either as a cost-effective solution for networked cameras, or as a SPOT MONITOR application.
Features:
* Cyber Protection: Quantum Iot Nano agent by Check Point™* NDAA Compliant SPOT Monitor / NVR
* IP Video Inputs: 16CH. RJ45 Over Network connection
* Max Input / Output Bandwidth: 96Mbps / 96Mbps
* Recording: 16 x 8MP Real-Time
* Max Decoding: 1CH - 8MP ; 4CH - 2MP ; 9/16CH - D1
* Video Compression: H.265 / H.265+ / H.265S / H.264
* Display Outputs: HDMI (4K, 1080P), VGA (1080P, 1280x1024, 1024x768)
* Audio Support: See specification sheet
* Storage: 2x HDD Bays. Max 10TB each. Not included.
* Ethernet Uplink Port: 1000 Mbps (RJ-45)
* Search Modes: DDA Object, Smart Search, LPR, Time-Slice, Event
* Analytics DDA1: Camera Tampering, Line Crossing, Sterile Area - Human & Vehicle
* Analytics DDA2: Object Monitoring, Loitering Detecction, Illegal Parking, Audio Exception,
* Analytics DDA2: Heat Map, Object Counting (Line), Object Counting (Area), Smart Search
* Analytics DDA2: Face Detection, LPR, Thermal, Crowd Gathering, People Intrusion
* Alarm Input / Output: 4 + IPC In/ 1 + IPC out
* Dimensions - W 375 x D 275 x H 50mm
* APP Support - Provision CAM2 for iOS/ Android
*** DDA/ LPR Analytics Live Snapshots are not supported***
Storage & UPS Options:
* 4Tb 46075* 6Tb 460751
* 8Tb 460752
* 10Tb 460753
* Provision-ISR 24" Ultra-Thin Monitor: 50008
* Provision-ISR 1000LI Compact 1000VA UPS 34572
* Provision-ISR 1000OL-RM Professional 1000VA UPS 34580
