Provision-ISR 4CH NVR5 KIT: With 2Tb & 4x 2MP S-Sight Turrets 2.8mm
Stock Code:
33603
POA
Description

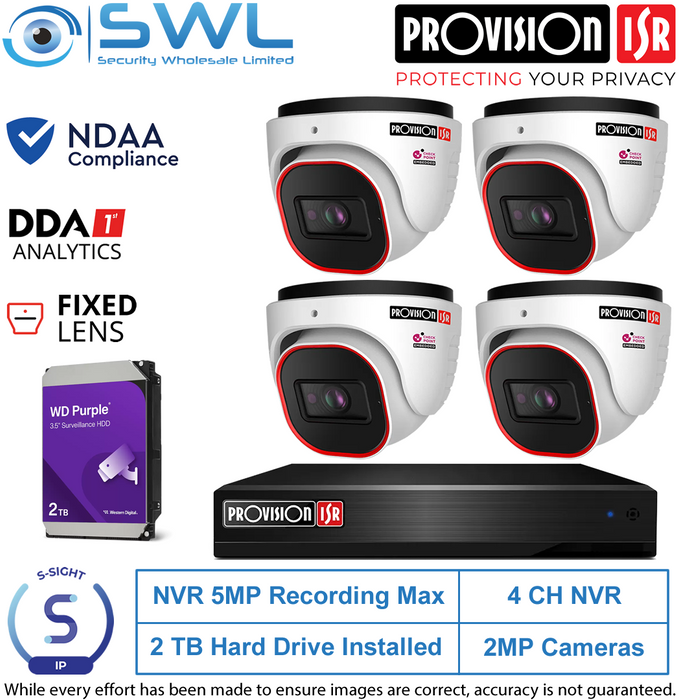

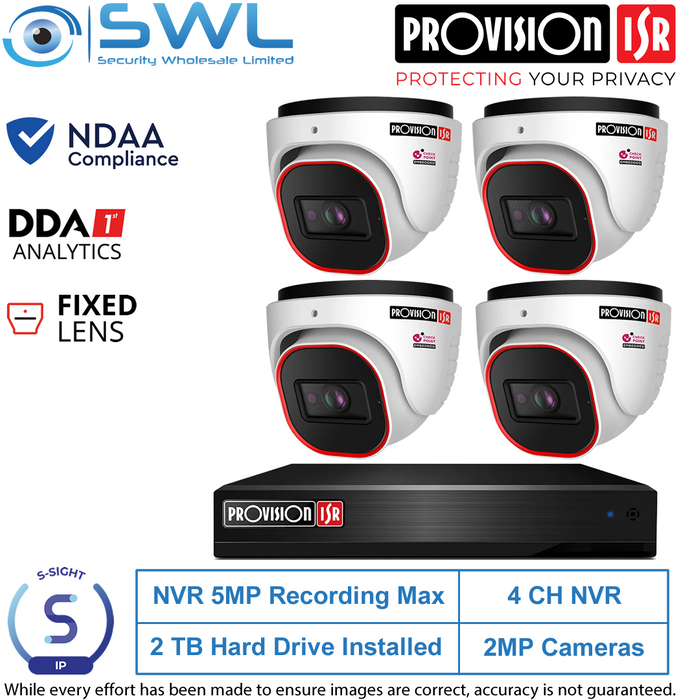

Kit Includes:
1 x Provision-ISR NVR5-4100PXN(MM) 4CH NVR 335044 x Provision-ISR DH-320IPSN-28 S-Sight: 2MP NDAA Turrets Hybrid 33008
1 x WD Purple Hard Drive 3.5" 2Tb Installed - 3 Year Warranty 46073
NVR Features:
* Embedded Cyber Protection: Quantum Iot Nano agent by Check Point™* NDAA: Compliant NVR
* IP Video Inputs: 4
* Onboard PoE: 4 Ports, Max budget, 50W total.
* Bandwidth: Input/ Output, both 64Mbps
* Recording: 4CH @ 5MP real time
* Max Playback: 1CH @ 5MP, 4CH @ D1
* Video Compression: H.265+ / H.265/ H.265S/ H.264
* Display Outputs: 1x HDMI 1920 x 1080, 1x VGA output
* Storage1x HDD bay. 2Tb installed for you.
* Analytic Support: DDA1 & DD2. LPR Capture Only (Eye-Sight). See specification sheet
* Search Mode: DDA Object, Smart Search, LPR, Time-Slice, Time, Event.
* Alarms: IPC. Add Provision-ISR IO-1606 USB Input & Output Module: 33501
* Ethernet Port: 1x 10/100Mbps self-adaptive Ethernet interface
* USB: 2x Ports
* ONVIF Support: Full Device Support (Profiles T/G, ONVIF Version 20.12)
* Power Supply: 48VDC/ 1.04A
* APP Support 1: Provision CAM2 for iOS/ Android
* APP Support 2: IE for Windows 7/8/10, Safari for Mac OS, CMS for Windows/MAC
* Dimensions: W255 x D220 x H45mm
Monitor & UPS Options:
* Provision-ISR 24" Ultra-Thin Monitor: 50008* EATON 5E UPS 700VA/360W, 2x NZ OUTLETS 13071
* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
Camera Features:
* Embedded Cyber Protection: Quantum Iot Nano agent by Check Point™* NDAA: Compliant camera
* Resolution: 2MP 1/2.8” CMOS (16:9)
* Lens/ FOV: 2.8mm - 104° (H)
* D(O)RI: See specification sheet
* Video Format: H.265+, H265, H.264+, H.264 Compression
* Image Enhancement: True Wide Dynamic, 120dB (with BLC, HLC)
* Min Illumination: Day: 0.1lux / Night: 0.006ux (@F1.6, AGC on) 0 lux with IR on
* Max IR Distance: 20m actual (1 High Power IR LED)
* ONVIF: Profiles T, S & G
* Analytic Features: DDA1 Object Recognition, Line Crossing & Sterile Area
* Audio: Built-in Mic, 1 Audio Input
* SD Card: Event/Schedule Record (Up to 256GB) 46039
* Power : DC12V/~400mA / PoE/~ 6W
* Ingress Rating: Weather Proof, IP67. Metal camera ball and shroud.
* Dimensions: Ø97mm × 82.6mm
Accessories:
* IP66 Back Box: PR-JB12IP66 34074* Wall Bracket: PR-WB-A 34078
* Pole Mount: PR-B50PB 34032 and PR-WB12 34083
* Ceiling Mount: PR-CB12 34082 and PR-B10EX extension sections 34062 Guide HERE
