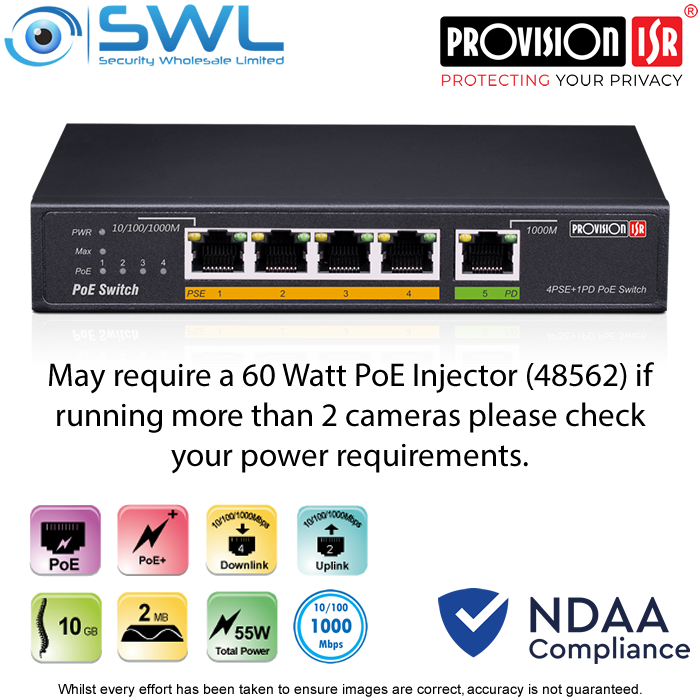

Provision-ISR PoES-0460G+1G(HPD): 4x Gigabit PoE, PoE+ Powered
Stock Code:
34303
POA
Description
PoE Switch Features:
* NDAA: Compliant Switch* Downlink Ports: 4 x 10/100/1000Mbps RJ45 port
* Uplink Ports: 1 x 10/100/1000Mbps
* SFP Ports: None
* Ethernet Standards 1: IEEE802.3, IEEE802.3u, IEEE802.3ab,
* Ethernet Standards 2: IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3bt
* PoE Power: Ave. Power per channel 1.75W, total budget 55W
* PoE Power Max: 30W on 2 channels
* Power Supply: 100-240VAC/High PoE RJ-45 Input
* Power Consumption: PoE On: 60W Max. / PoE Off: 3W Max.
* Backbone Bandwidth: 10Gbps
* Max. Standard Transmission: 100m
* CCTV Mode: Independent for each downlink port (By DIP Switch)
* Surge Protection: Built-In
* Rack Mount: No
* Dimensions:190 x 63 x 28mm
CCTV Mode:
CCTV mode allows a camera connection up to a 250m distance.This extension of distance reduces the Ethernet speed to 10Mbps.
