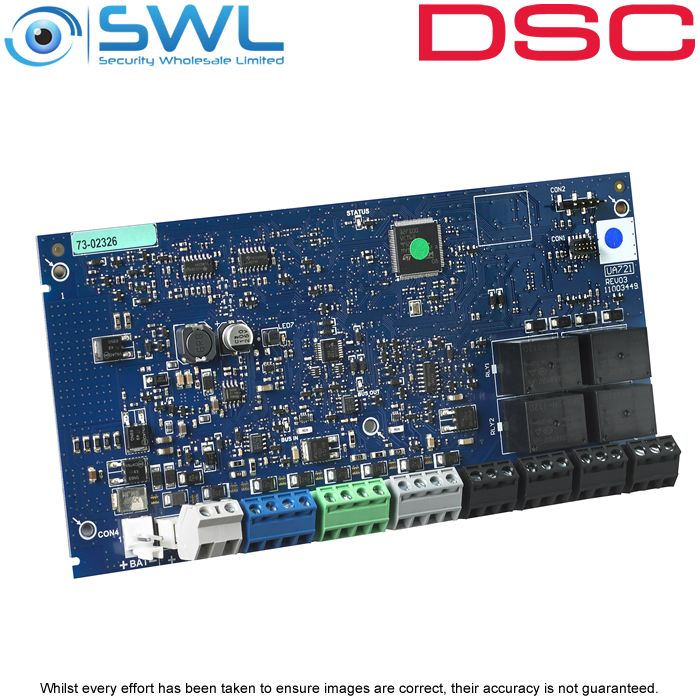

DSC PowerSeries PRO: HSM3204CX 2 Amp Power Supply With Bus Repeater, Power Adap
Stock Code:
143913
POA
Description
PowerSeries PRO uses robust PowerG technology to provide long-range wireless communications. The entire system is protected by 128-bit AES 'military grade' encryption on wired BUS, PowerG wireless devices, IP and cellular communications. For added reliability and to prevent tampering, PowerSeries PRO is equipped with triple-end-of-line capability for hardwired zones and anti-masking for both wired and wireless zones. This ensures full premises intrusion detection and enhanced cyber-security protection. In an era of increasing 'external threats', PowerSeries PRO aims to provide a truly secure solution.
PSU Repeater Features:
* The HSM3204CX provides an additional 12V DC, 2 Amps of current along with 4 programmable Form-C relay outputs* Each module extends the bus up to 1,220m. Four modules may be connected together in series for a total of 4,265m
* Uses HS65WPSNA Power Supply Adapter
* Connect up to 1/8 modules per system
* Provides enhanced diagnostics information for simpler diagnostics.
PSU Repeater Specifications:
* Board Current Draw: 25mA set/unset, 150mA alarm* Board Dimensions: 191 x 97mm
* AUX/ Corbus output rating: 10.8-12.5 VDC
* Output Ripple Voltage: 600 mVp-p max
* No overvolatage protection devices required on outputs
* Storage Device: Rechargeable battery 12V, replace every 3 to 5 years
* Battery Capacity: 4Ah, 7Ah, 14 Ah (2 x 7Ah), 17 Ah max
* Low battery trouble indication 11.3 VDC, restoral on AC connection
* Corbus (Red Terminal) low voltage trouble threshold 6 VDC
* Battery deep discharge protection (cut off at 9.2 VDC)
* Compliance: ROHS
* Certification: EN50131 Grade 3
