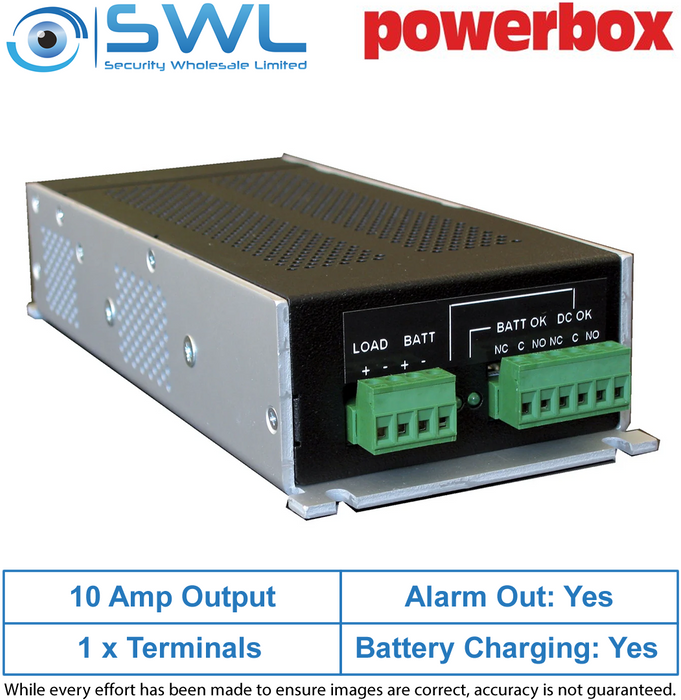

Powerbox PB256-1210CML: 13.8VDC 10A Power Supply, 8A Output + 2A Charging
Stock Code:
11170
POA
Description
The PB256 -1210CML is a13.8VDC, 138W off-line battery charger / DC uninterruptable power suppliy which operate from 220/240VAC mains power. When connected to a lead-acid battery, these units provide uninterrupted power to a DC load in the event of mains failure.
It contains a two-step current limited float charger, battery charge current limiting, a battery low voltage disconnect and mains/ charger and battery alarms. It employs high efficiency technology, combined with very low output noise making it suitable for powering broad range of loads such as security, radio, scada, control equipment and alarm systems etc.
Features:
* 13.8 VDC 8A Power Output* 2A Battery Backup System
* DC UPS Connectable
* Independent Load and Battery Current Limited
* Converter ON/ OK alarm
* Battery Low Alarm
* Battery low voltage disconnect switch with internal electronic circuit breaker
* Battery Over Load protection
* Conformal Coating option for wet areas
* Case Size: L 230 x W 90 x H46mm
* Weight: 850g
* Safety: AS/NZS 60950, Class I CAUTION NEUTRAL FUSING
* EMC: Complies with ACA EMC Scheme - C-Tick
- Emissions Comply with AS/NZS CISPR11 Group1, Class B
This power supply comes with an NZ compliant IEC lead.
