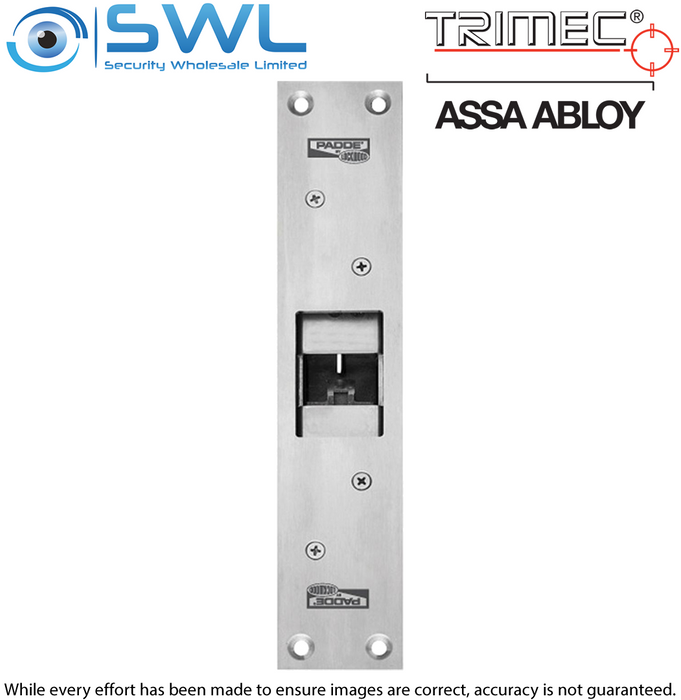

Trimec ES6001 (LT116001-000): Hook Lock PTL MORTICED Version, 680Kg
Stock Code:
60200
POA
Description
***** Ordered at request 3-4 day lead time *****
ES6001 series Hook Locks are suitable for swinging doors, sliding doors and are easily attached to wood or steel door frames. Includes heavy duty design with a high preload (side load) capability of up to 300Kg, high holding force of up to 700Kg with an up to 4 hour fire rating. Both PTO and PTL models are available, as well as both recess and surface mounted versions. The surface mounted version is completed with a cast aluminium cover. ES6001 can be mounted vertically and horizontally, with self-latching ability without power for fire applications.
Features:
* Power to Open or Power to Lock versions available* Side Load (Pre-Load) Capable: Operates freely with up to 300 kg of side pressure
* Self Latching: Will self latch without power for fire applications 680kg holding force
* Robust Construction: Stainless steel components used
* Low Profile: Will protrude only 40mm into door headroom
* Multi Voltage: Automatic selection 12 to 30Vdc with back
* EMF protection and reverse polarity protection
* Multi Orientation: Can be mounted vertically or horizontally
* Low Current Consumption
* Monitored: locked and unlocked Tested to the 300kg preload capability
* Applications: Heavy Duty Applications Sliding & Swing door applications
* High Air Pressure Environments (High Pre Load rating)
* Standards: CE approved. Approved to UL1034 (highest level)
* Compliance: Fire rated up to 2hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets).
