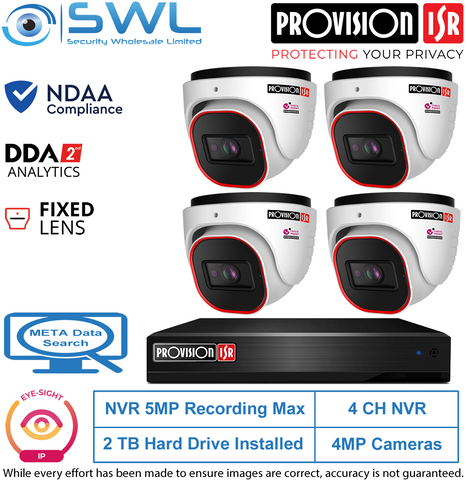

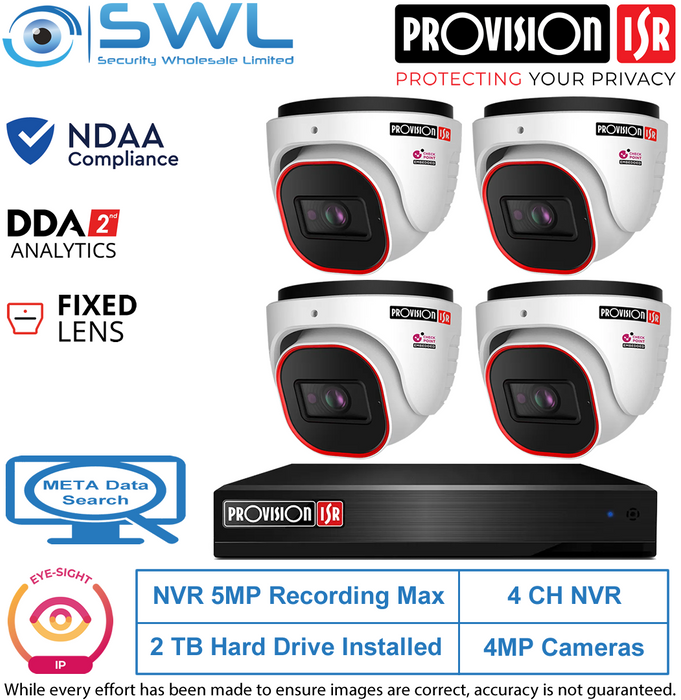

Provision-ISR 4CH NVR5 KIT: With 4x 4MP Eye-Sight Turrets 2.8mm, 2TB
Description
1 x Provision-ISR NVR5-4100PX 4 Channel NVR
4 x Provision-ISR Eye-Sight v2 Series: 4Mp Turret WDR IR40m IP67 2.8mm
1 x 2Tb HDD
NVR Features:
* IP Video Inputs - 4
* Onboard PoE - 4 Ports, 50W total.
* Max Input / Output - 32Mbps / 32Mbps
* Recording - 4CH @ 5MP real time
* Max Decoding - 1CH @ 5MP, 4CH D1
* Video Compression - H.265+ / H.265/ H.265S/ H.264
* Display Outputs - 1x HDMI 1920 x 1080, 1x VGA output
* Storage - 1x drive bay. Max 6Tb (not included)
* Ethernet Port - 1. Independent 100Mbps port
* Analytic Support - DDA & LPR Support (camera dependent) Download the Provision-ISR How to Setup Analytics from the NVR Guide HERE
* Power Supply - 48VDC/ 1.04A
* APP Support - Provision CAM2 for iOS/ Android Download the Provision-ISR CAM2 Mobile App Guide HERE
Camera Features:
* Resolution - 1/3" CMOS (16:9) 4MP
* Lens / FOV - 2.8mm Lens 108° (H)
* Video Format - H.265S/H.264S*, H.265+/H.264+/H.265/H.264/MJPEG**
* Min Illumination - Day: 0.1lux / Night: 0.005lux (@F1.6, AGC On) 0lux with IR on
* Max IR Distance - 20m - Actual (3 High Power IR LED)
* Analytic Features 1 - Object Detection (Sterile Area, Line Crossing, Object Counting),
* Analytic Features 2 - Face Detection (10 Faces per frame), Camera Tampering.
* Audio - In bulit Microphone, one-way Audio. 1x separate audio Channel IN
* Storage - Micro SD Card (Up to 128Gb)
* Power - DC12V/~900mA / PoE/~10W
* Ingress Rating - Water Proof: IP67. Metal camera ball and shroud.
ACCESSORIES - NOT INCLUDED:
* IP66 Back Box: PR-JB12IP66 34074
* Wall Bracket: PR-WB-A 34078
