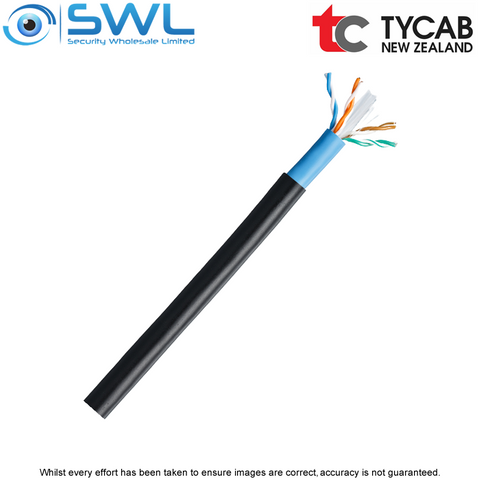

TYCAB DPA81051BK: CAT 6 UTP External Rated, HDPE Insulated 250m Roll COLLECT ONL
Stock Code:
05340
POA

Description

U/UTP cable – category 6- 4 Pair Unshielded – PVC+PE Sheath
Category: U/UTP CAT6-4P-PVC+PE

Test Standard: ISO/IEC11801?TIA- 568-C.2?YD/T1019

Conductor:
Material: SOLID-BareCopper
Nom. O.D. (mm): 0.570
Up: +0.005
Down: -0.005

Insulation:
Material: HDPE
Diameter: 1.02±0.03mm

Colour:
A. Blue, White-Blue
B. Orange, White-Orange
C. Green, White-Green
D. Brown, White-Brown

Sheath:
Thickness: 0.6±0.05 mm
External: O.D. 7.5±0.5 mm
Surface: Clean, Frap, Satiation
Material: LDPE (complies RoHS)
Color: Black

This Tycab cable is certified to be in compliance with the requirements of Best Environmental Practice Guidelines PVC v2.0 2022 (BEP2.0) from the Vinyl Council of Austrialia. Accreditation is valid through to July 2027.
