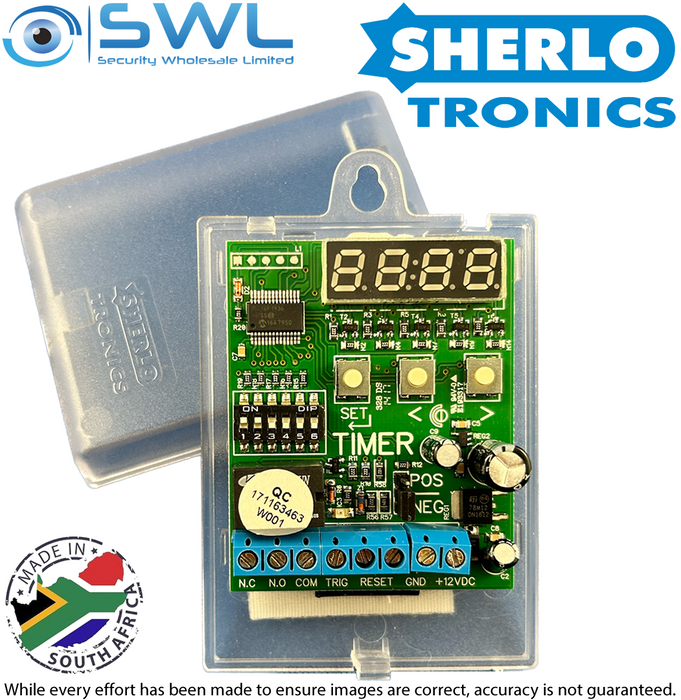

Sherlotronics Multi-Function Timer Module SHERLO-TIMER
Make an Enquiry
Stock Code:
09096
POA
Warranty Details:
1 Year Return to Base

Description

This timer can be programmed with 10 different functions. This module can be used for customising siren output times, beam bypass, guard awake and auto gate & garage door closure applications. A variety of applications and functions are visualised for this product and with a bit of imagination the unit will solve various security installation issues.

Features:

* Input Voltage: 10V DC - 14V DC
* Versatile Timer Module can be programmed with 9 different functions
* Functions:
- 1sec - 59min timer output
- 1min - 24hr timer output
- Auto door closure
- Guard awake timer
- Pulse Stretcher
- Counter
- Countdown trigger output
- Flase alarm prevention
- Momentary to latching
* Positive or Negative trigger input
* 1 Amp relay ouput load @ 12V DC
* PCB Dimensions: 52 x 65mm

See specification sheet and manual below.
