TANE STB-10 DM Recessed Reed: 9mm DIA. 12.5mm Gap. Donut Magnet, Rare Earth
Stock Code:
27024
POA
Description

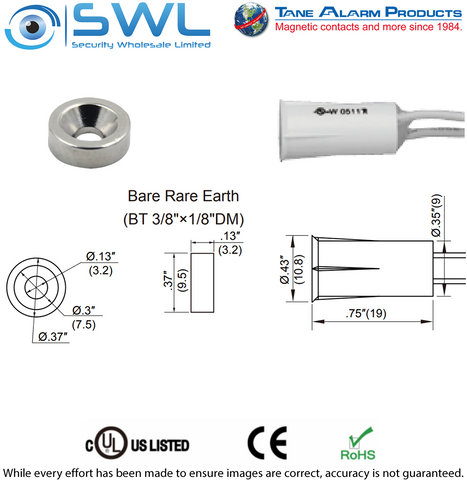

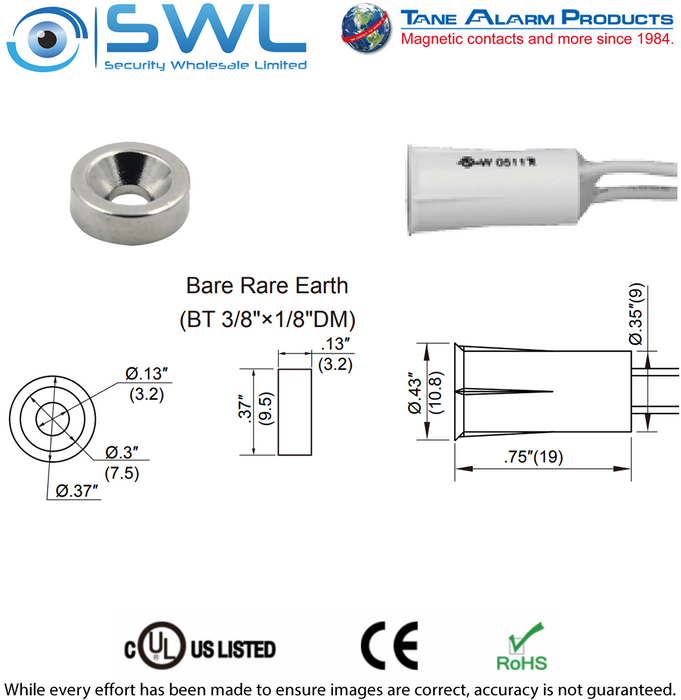

STB-10 DM Reed Specification
* Contact Size: 9mm ×19mm (.35"×.75")
* Standard Magnet Size: 9mm ×19mm ( .35"×.75")
* Gap: 12.5mm (.5")
* Colour: White
* 305mm (12") 22 AWG Leads Standard
* Standards: UL listed, equipment 21S4. File BP4702.
* Standards: CE, RoHS
** Only for use with non-magnetic mounting surfaces. Use 22AWG wire. 30VDC 05.A
See specification sheet below.
