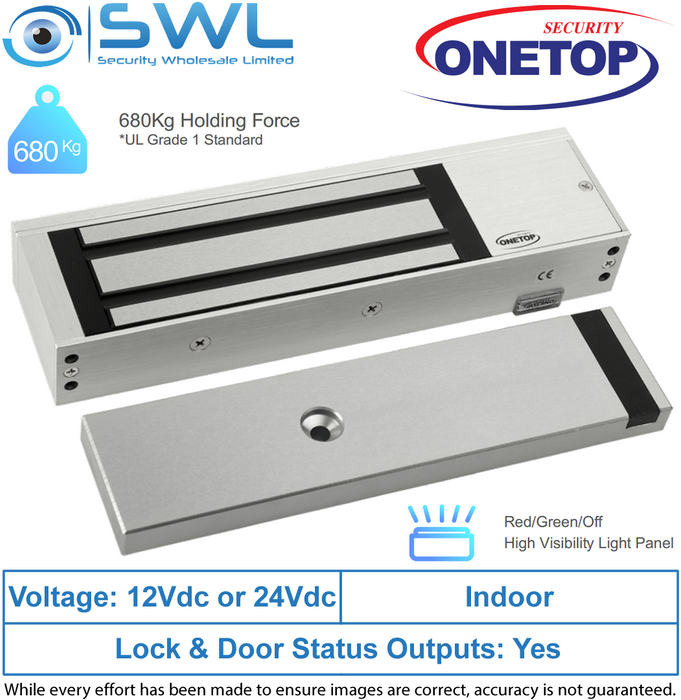

ONETOP HH5800 DSS: Single High Holding Force Electromagnetic Lock 12/24VDC 680Kg
Description
HH5800 series are high holding force quality electromagnetic locks with a true holding force of 680kg, LSS Monitoring with premium quality corrosion resistant plating. HH5800 has tested corrosion resistant up to 96 hours salt spray and to over 1 million usage operations. HH5800 is fire rated and certified to the maximum highest life security requirement with UL10C at 3 hours and 4 hours for EN1634-1-2014/ BSEN1634-1-2014 and BS476-22.
Specifications:
* Built-in Light Panel
* LSS Monitoring
* DSS Monitoring
* Fail Safe: Power to lock
* Operating Voltage: 12-24VDC ±10%
* Operating Current: 12VDC – 700mA 24VDC – 420mA
* Holding Force: 680Kg
* Impact Energy: 200J (AS4145.2 Standard)
* Delay Timer: Built-in 0-110 seconds
* Exit Release: Exit Through Lock Release Button
* Cover Tamper Switch: Monitoring Paba Closure Tampering
* Surface Finishes: Anodized Aluminum Housing
Download specification sheet .pdf below
