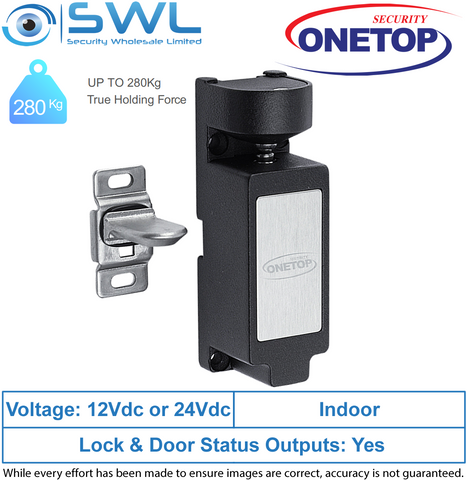

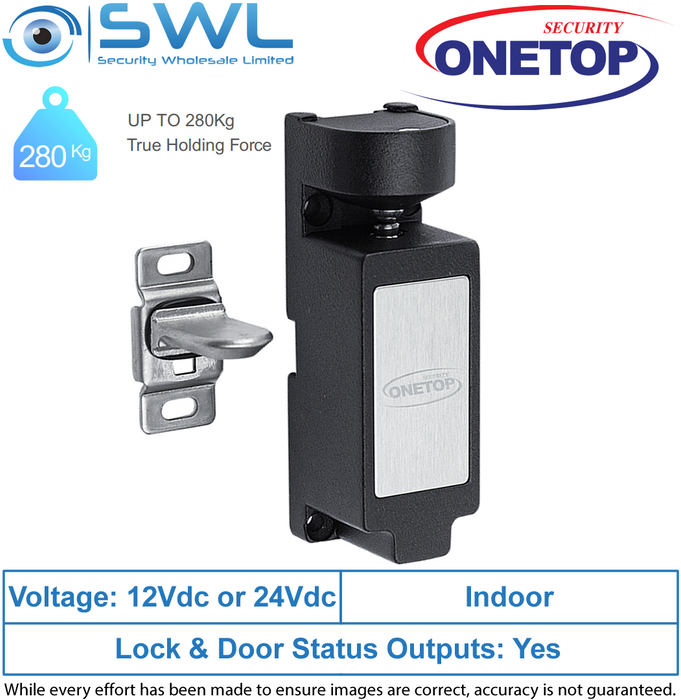

ONETOP CL0001 DM: Cabinet Lock With Monitoring, 200Kg
Make an Enquiry
Stock Code:
58062
POA
Warranty Details:
3 Years Return to Base

Description

Equipped with dual monitoring and interchangeable between the POWER TO LOCK (Fail Safe) mode and POWER TO OPEN (Fail Secure) mode, The cabinet lock series is designed to fit into mailbox cabinets and lockers with swing or sliding doors.

Features:

* Lock Holding Force: 200Kg
* Finish: Black powder coating
* Lock Body Dimension: L 94 x W 30 x H 32mm
* Strike Plate Dimension: L 40 x W 18 x H 31mm
* Lock Operating Voltage: 12/24VDC +/-10%
* Lock Operating Current : 200mA/12VDC; 100mA/ 24VDC
* Lock Status Output (LSS): NO/NC/COM, Max 24VDC; Max 2A
* Door Status Output (DSS):NO/COM, Max 24VDC; Max 0.2A
* Operating Temp: 10°C to + 60°C
* Weight: 170g
* Expected Lifespan: Over 1 million cycles
* Certifications: CE

See specification sheet and install guide below.
