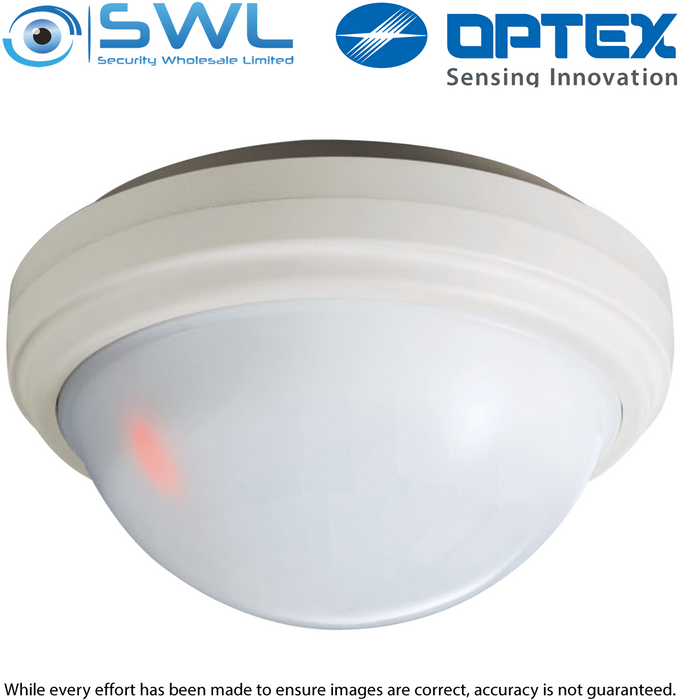

Optex SX-360Z: Indoor 360° Ceiling Mount PIR Detector, 2.4m - 5.0m (H) x Ø18m
Stock Code:
28007
POA
Description
A 360° ceiling-mount detector, with its unique zoom function and highly dense, triple-element detection pattern, provides unsurpassed detection performance at any ceiling height up to 5 metres.
Features:
* High density coverage eliminating dead spots* Zoom Function/ Pattern Adjustment: Pattern angle can be adjusted.
* Patented Multi-Focus Lens
* False Alarm Protection: Against RFI, Temperature, Signal Noise
Specifications:
* Mounting Height: 2.4 -5.0m* Coverage: Ø18m. Variable pattern angle can be adjusted from min to max height.
* Detection Zones: Highly dense coverage, 276 zones
* Shielding: Double Conductive
* Tamper: N.C. Opens when cover removed
* Power Input: 6-18VDC
* Temperature protection
* Noise reduction circuit
* Weight: 224g
* Standards: UL, C-ul Listed
* Certification: EN50131-2-2:2021, PD6662:2017
* Dimensions: Ø126mm x 67mm
See specification sheet and manual.
