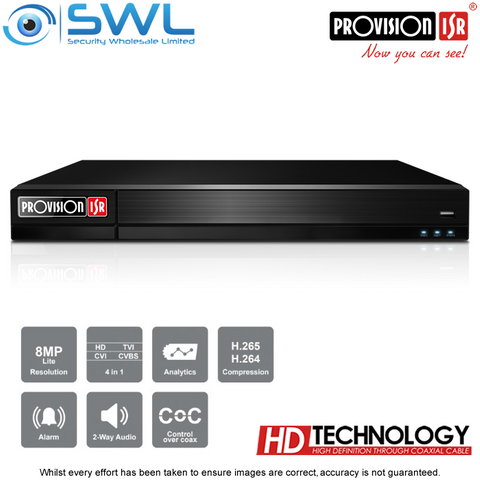

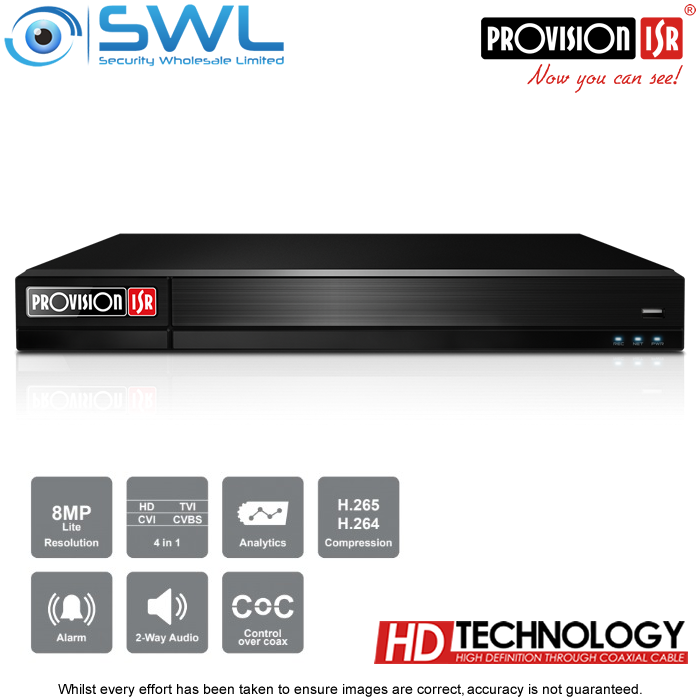

Provision-ISR SH-16200A5-8L(1U) 16CH Hybrid DVR 16x AHD +8CH IP 2x HDD. No HDD
Stock Code:
33751
POA
Description
Provision-ISR SH-16200A5-8L (1U) 16CH AHD +8CH IP Hybrid DVR
Features:
* Analogue Video Inputs - 16CH Standard BNC (AHD) Max 8Mp Lite* IP Video Inputs - Hybrid Modes with switch. Max 8Mp IP.
* Max Input - 16CH AHD 8Mp Lite + 8x 8Mp IP (32Mbps) or 8CH AHD + 16x 8Mp IP (64Mbps)
* Max output - 96Mbps
* Recording - Up to 20CH@ recording resolution (40Mbps max)
* Max Decoding - See specification sheet, max output 18Mbps
* Video Compression - H.265 / H.264
* Analytic Support Analogue - Line Crossing (no direction choice), Sterile Area
* Analytic Support IP - Line Crossing (with direction choice), Sterile Area, Object Monitoring
* PTZ Support - RS-485 / IP. Supports Pelco D/P, Samsung, ONVIF S
* Display Outputs - HDMI 1x (1920 x 1080), VGA (1280 x 1024), CVBS (Spot)
* Storage - 2x HDD bay. Max 8Tb. Not included
* Ethernet Port - 1000 Mbps (RJ-45)
* Alarm Input / Output - 16CH IP / 4CH IP
* Dimensions - 375mm (W) x 275mm (D) x 45mm (H)
* APP Support - Provision CAM2 for iOS/ Android
Storage & UPS Options:
* 1Tb 46072* 2Tb 46073
* 4Tb 46075
* 6Tb 460751 Max
* EATON 5E UPS 650VA/360W, 2x NZ OUTLETS 13070
* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
Downloads
Stock Level:
Low Stock
