Description
******** Ordered at request 3-4 day lead time **********

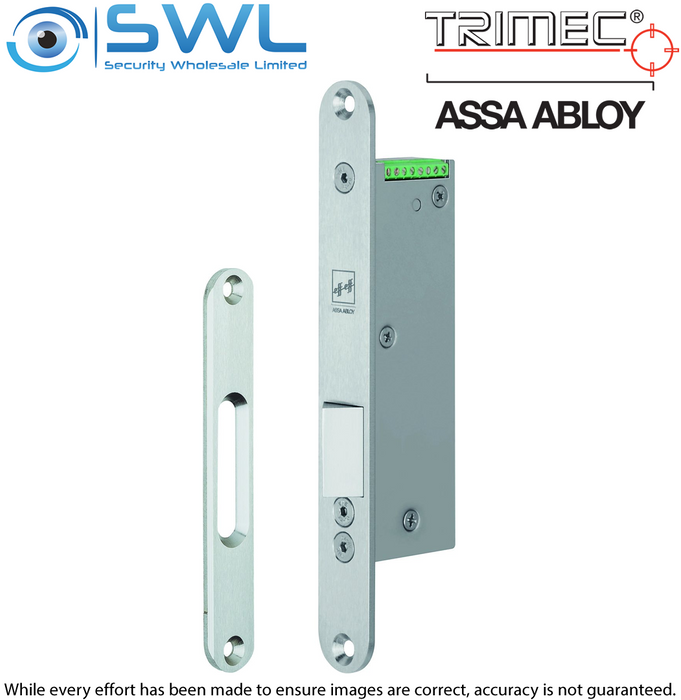

The electronic swing 351M.80 motorised lock is equipped with an innovative quiet electric motor drive and is designed for the locking of swing, double swing, and carousel doors. It is suitable for horizontal or vertical installation in the door frame.
The door contact and the armature contact are designed as potential-free switching contacts. The door contact is switched magnetically when the door is closed. The armature contact can be used to monitor locking status.
The 351M.80 drop bolt works according to the fail-safe unlocked operating principle. If the power is shut off or the power fails, the door can be opened. If power is connected and the door is in the inch Door closedinch position for at least 1 s
Features:
* Very quiet locking and unlocking, silent during permanent release* Suitable for double-action swing doors and single-action swing doors, interlocking doors and special doors
* Vertical and horizontal universal installation position in the door frame or in the door leaf
Specificationss:
* Holding force of 510Kg* Safe unlocking under pre-load of up to 510Kg
* 12V DC to 24V DC multi-voltage, controlled DC
* Voltage Monitoring contact and armature contact integrated
* Compatible with 351 Solenoid
* Bolt throw 10mm
* High 200mm
* Width 25mm
* Rebate clearance 3 mm (2 mm – 4,5 mm)
* Depth 42 mm
