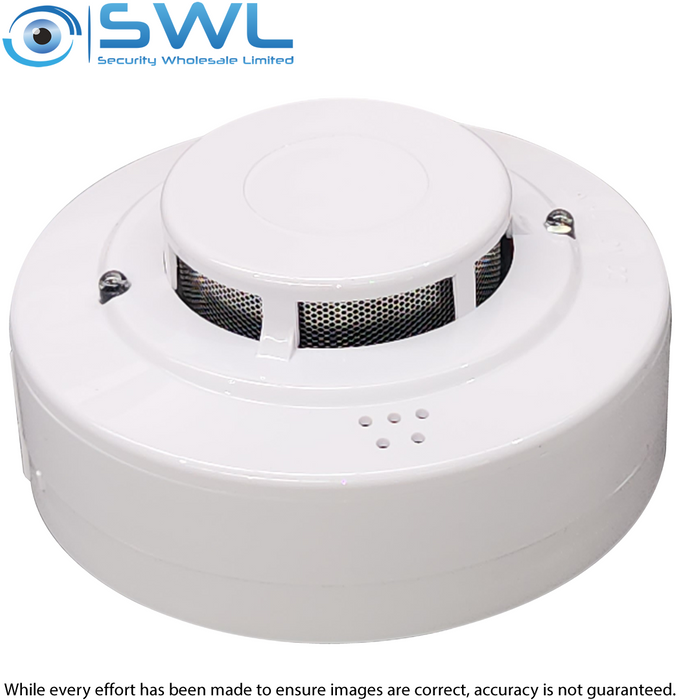

Auto Resetting Photoelectric Smoke Detector 12V 4-Wire, with Buzzer
Stock Code:
31004
POA
Description
Important Note: This device may be suitable for commercial applications and existing residential applications but does not comply with the new standard for new built homes and consented renovations 2024. Please check the required standard before installation.
From November 2024 the NZ Building Code Acceptable Solutions for Protection from Fire (C/AS1 and C/AS2) has been amended to make interconnected smoke alarms the minimum fire safety system for new built homes and consented renovations, citing NZS 4514:2021 – Interconnected smoke alarms for Houses. The standard allows for wirelessly or hard-wired interconnection, using either 10 year long-life battery-powered or 240v mains powered alarms. Code Compliant Smoke Detectors
Features:
* 4-Wire* Advanced detection and discrimination algorithms
* Easy installation and maintenance
* Sleek low-profile housing design
* Durable sensor head, no need for replacement
* SMD circuit board design
* N/C: N/O selectable relay output
* Auto Reset Function: Yes, for security systems
* Smoke Sensitivity: 0.98- 2.4%/ FT Obscuration (UL); 0.08-0.14 dB/m (EN)
* Temperature Range: -10°C to 50°C
* Humidity: 0 to 95% RH, no condensation or icing
* Weight: 130g/ set with base
* 1 year warranty
* Dimensions: Ø100mm x 46mm with base
* Manufactured to: EN54-5: 2000+A1:2002, EN54-7: 2000+A1:2002+A2:2006
