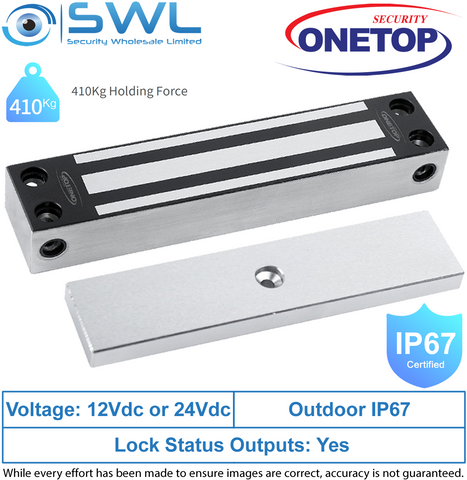

ONETOP EM4700FS LSS: Weather Resistant Stainless Gate Mag Lock 410Kg

Stock Code:
58009
POA

Description

EM4700 series is a weather resistant magnetic lock. It is designed to suit outdoor hinged and sliding door applications. EM4700FS series is a Fail-Safe lock with holding force up to 410kg, and dual operating voltage of 12/24VDC. The lock model is provided with a dual fixing arrangement, Lock Status Sensor (LSS) and comes with a 3 year warranty.

Features:

* Security/ Holding Force: Grade 4+ (4000 N)
* Category of use: Grade 3 (High frequency - Public use)
* Durability/ reliability: Grade 9 ( > 1 000,000 cycles)
* Corrosion resistance/humidity/IP protection: Grade 3 (EN 1670, EN ISO 9227)
* Weather resistant IP67
* Mounting: Surface - Front mount
* Residual magnetism: 0% - By design (No push-pin, no electronic quick-off)
* Locking monitoring (LSS):
* Electrical/ spark protection: Built-in metal-oxyde varistor (MOV)
* Power: 12/24 VDC - 500/250 mA
* Sizes: 220mm x 32mm x 47 mm
* Armature Plate: 185mm x 42mm x 12mm
* Weight: ~3 kg
* Environmental / Temperature: -40°C to +60°C
* Compliances:
- CE 2014/30/EU
- EN 13637 (Chap.7) 2015, EN 1670, EN ISO 9227
- ASTM B 117
- RoHS/ Reach

Stock Level:
In Stock
