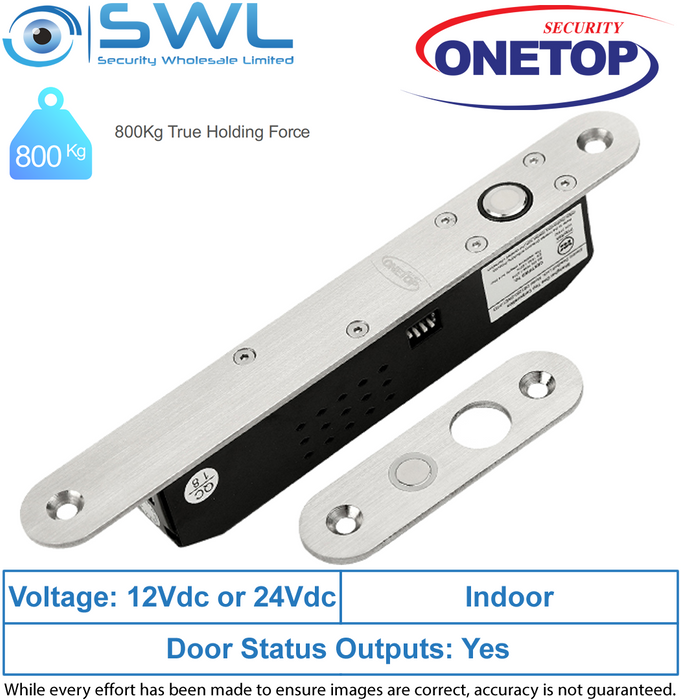

ONETOP DB1260-DRET-PTL: Narrow Profile Dropbolt 12-24VDC Fail Safe - 800Kg
Stock Code:
58080
POA
Description
DB1260 drop bolts are designed for slim narrow swing door frame mounting applications. Available in a choice of Power to Lock (PTL) or Power to Open (PTO) mode. This bolt operates on auto sensing voltage input from 12VDC to 24VDC with a holding force up to 800Kg and option for built-in Door Status Sensor (DSS) Remote Release control, Bi-color LED indicator and Audible Tone. Compared with other drop bolts, DB1260 has the unique advantage of a bolt position sensor, a protection against possible damage against door collisions with bolt caused by fast door closing and locking system misalignment.
Features:
* Lock Holding Force: Up to 800Kg* Surface Finish: Brushed Stainless Steel Faceplate
* Face Plate Dimensions: L 210 x W 25 x H3 x D 35mm
* Strike Plate Dimensions: L 91.8 x W25 x H 35 x D 7mm
* Bolt Extend Delay: Time delay setting of 0/3/6/10 seconds
* Lock Operating Voltage: 12-24VDC +/- 10%
* Lock Operating Current: 12VDC Rush: 1.15A; Hold 0.25A. 24VDC Rush: 0.62A; Hold 0.14A
* Remote Release: External Remote to release the locked door
* Output Signals: Door Status Output (DSS) COM/NO/NC.
* Buzzer: 80dB output
* Surge Protection: Built in TDS Diode
* Weight: 0.7 Kg
* Expected Lifespan: Over 1 million cycles
* Certifications: CE, ROHS, Intertek, BS EN1634-1: 2014 Fire rated 4 hours
See specification sheet below.
