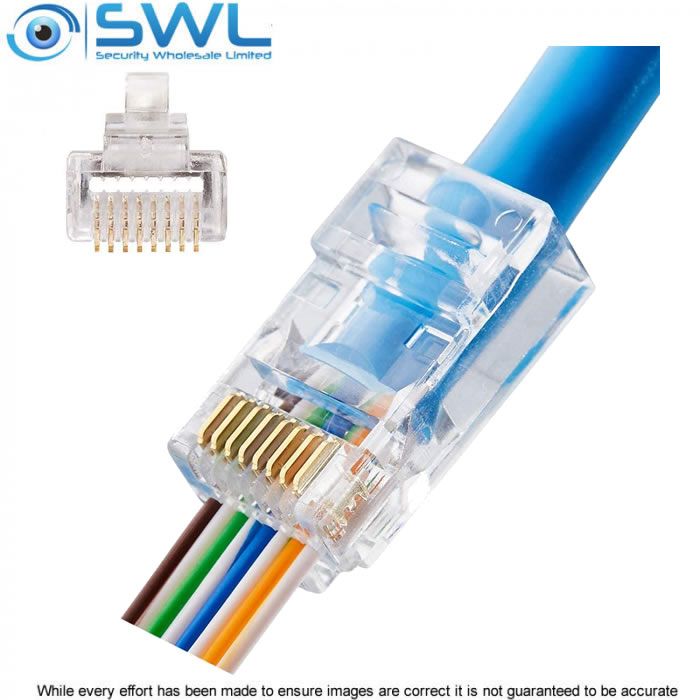

EZ-CAT6-UTP: CAT6e RJ45 Pass Through Connector, Jar of 100
Stock Code:
01504
POA
Warranty Details:
1 Year Return to Base
Description
Name: Super Six types of perforated Connector (RJ45)
Type: Unshielded (UTP)
Material: new PC material,UL 94V-0
Specifications: Single row (UTP CAT6 EZ) line hole 1.1mm
Color: transparent
PIN pin: pure copper Gold-Plated contacts
Contacts : 3-5u
* Safety Voltage/Current Rating 150V ac,at 1.5A.
* Dielectric with standing 1000V/DC/min,<0.5A.
* Insulation Resistance:>500MO,1000V./min
* Contact Resistance:<20MO
* Cable-to-Plug tensile strength-20LBs(89N)min.
* Durability:750 mating cycles.
* Operation Temperature:-40?~+85?.
*the products are compliant with the RoHS,and REACH ETC.
