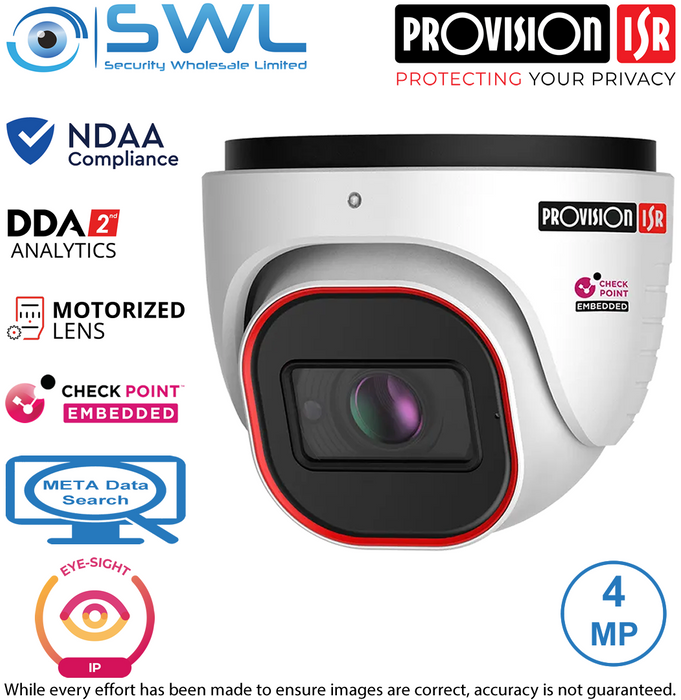

Provision-ISR DI-340IPEN-MVF-V4: Eye-Sight 4MP Turret WDR IR40m IP67 2.8-12mm
Stock Code:
33160
POA
Description
With a capable 2.8-12mm lens, this 4MP Turret camera is designed to meet medium-range surveillance requirements in indoor and outdoor scenarios. Eye-sight v4 cameras offer broad possibilities for the use of analytics including DDA1 (Detect-Distinguish-Alert); which combines accurate object recognition with line crossing, sterile area and object counting rules and DDA2, enabling appropriate NVRs to search footage based on 'metadata' such as age, colour, gender, vehicle brand and more. Check Point's Quantum IoT Nano agent is integrated into this model, providing an advanced threat prevention layer against the common attack vectors at runtime.
Features:
* Quantum IoT Nano agent by Check Point™* Resolution: 1/2.8" CMOS (16:9) 4MP
* Lens / FOV: 2.8-12mm Motorised Lens with Auto Focus 100°-29° (H)
* DORI: See Lens information on specification sheet
* Image Enhancement: True WDR (120dB), BLC, HLC, ROI
* Image Orientation: Mirror/ Flip, Corridor Mode
* Video Format: H.265S/H.264S*, H.265+/H.264+/H.265/H.264/MJPEG**
* Min Illumination: Day: 0.1lux / Night: 0.005lux (@F1.6, AGC On) 0lux with IR on
* Max IR Distance: 40m, actual (3 High Power IR LEDs)
* Analytics DDA1: (Object Detection) Sterile Area, Line Crossing, Object Counting (Line),
* Analytics DDA1: Object Counting (Area), Face Detection (10 Faces a frame), Heat Map.
* Analytics DDA2: (Advanced Object Classification) Age, gender, vehicle brand, colour.
* Audio: Bulit in Microphone + Audio input + Audio output
* Alarm: In + Out
* SD Card: Event/Schedule Record (Up to 256GB) 46039
* ONVIF: Profiles T/ S/ G
* Power: DC12V/~400mA / PoE/~6W
* Ingress Rating: Water Proof, IP67. Metal camera ball and shroud.
* Dimensions: Ø113mm × 99.6mm
* NDAA: Compliant Camera
Camera Accessories:
* IP66 Back Box: PR-JB14IP66 34072* Wall Bracket: PR-WB-A 34078
* Pole Mount: PR-B50PB 34032 and PR-WB14 34081
* Ceiling Mount: PR-CB14 34080 and PR-B10EX extension sections 34062
