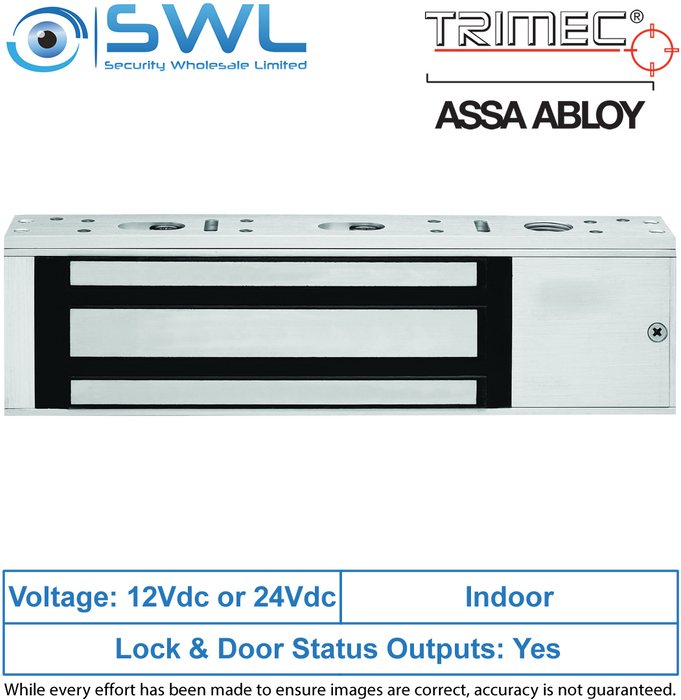

Trimec LEM600MR: Z8 Single Maglock c/w Bond Sense & Reed Monitoring, 580Kg
Stock Code:
60130
POA
Warranty Details:
2 Years - 5 Years on Specific Products
Description
The Z8 Single Series Electromagnetic Locks operate with holding forces from 550kg up to 580kg. Covering a range of applications the Z8 Electromagnets are ideal for applications from Standard doors through to high use commercial swing doors. With fixing options including wood, aluminium and steel constructions, as well as glass door applications, the range caters to most electromagnetic needs.
Features:
* Fail-safe: unlocks when power is removed* Easy installation: suitable for both new and retrofit usage
* Self-alignment: armature plate pivots to accommodate door drop
* Silent operation: no humming or buzzing
* Instantaneous release: Smart electronics eliminate residual magnetism
Specifications:
* Holding Force: 550Kg - 580Kg* Dimensions: (L) 266mm x (H) 72mm x (D) 40mm
* Dual Voltage Selectable: 12VDC/ 24VDC ±10%
* Current: 512mA @ (12VDC) 256mA @ (24VDC)
* Monitoring: Hall-Effect & Reed Switch
