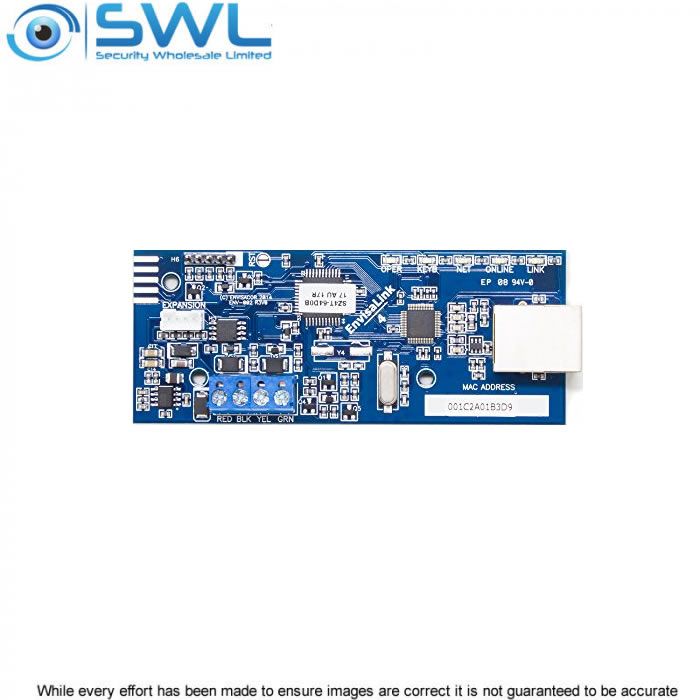

EyezOn Envisalink EVL-4CG IP Interface: Smartphone Control of PowerSeries Panels
Description
This IP hardware solution provides access to Apps which communicate with DSC PowerSeries panels:
PC1555, PC585, PC5010 (832), PC5020 (864). PC1616, PC1832, PC1864.
The EnvisaLink 4 is a powerful TCP-IP based bus-level interface to DSC PowerSeries* panels. It allows you to view the status of and even control your alarm panel through a standard web-browser or smart-phone. VOIP Friendly.
As new software features become available the EnvisaLink 4 is easily upgraded over the network and automatically keeps itself up to date.
Plays well with others through the built in TPI (third party interface); the EnvisaLink 4 is already compatible with many major home automation systems and numerous 3rd party Android and iPhone apps.
With the addition of the free EnvisAlerts service your control is enhanced and can be extended to anywhere in the world. EnvisAlerts also allows you to specify e-mail or SMS addresses to receive alarms, arms, disarms and more.
Module Features
• 100BaseT Ethernet Support
• Improved diagnostic LEDs to speed installation
• Remotely upgradable to allow for new features and services
• EnvisaLink TPI – programmer’s and integration interface
• EnvisaLink Expansion Header: Add new hardware modules as they become available
• Simple to hook-up
• Built-in basic web server and html user-interface
• 128-bit encryption
• Real-time zone status with “time-since-tripped ” feature
• Local Arm/Disarm/Zone Bypass/PGM Control
• Multi-Partition Support
Free EnvisAlerts Service
• Remote Arm (Away & Stay, Quick Arming)/ Disarm/ Zone Bypass)
• Receive Alerts by e-mail or push-notification (using App). NB: Text alerts are not supported in NZ.
• Support multiple named residential users for the same site and assign notification paths
• Assign names for alarm zones within the APP
• PGM Control (dependent on panel)
• Event Logging
• Network Supervision
• New “Smart Phone” App for iPhone & Android - see below.
EyezOn APP
For 'one-off' installations we recommend Installers go to the relevant APP Store and upload the latest version of the EyezON APP.
If you wish to install and administer multiple sites (as a Dealer) then the Connect2GO details on the box and paper install guide are appropriate.
Specifications
• Power Draw: 65 mA
• Connectors: RJ45, 4-Terminal Screwdown
• Dimensions: 10.5cm x 4.2cm
Included In The Box
• EVL-4EZR Module
• Mounting Stand-offs
• 2-Way Tape
• Connecting Wire
• Installation Guide
See below for user manual once the Envisalink 4 is installed.
