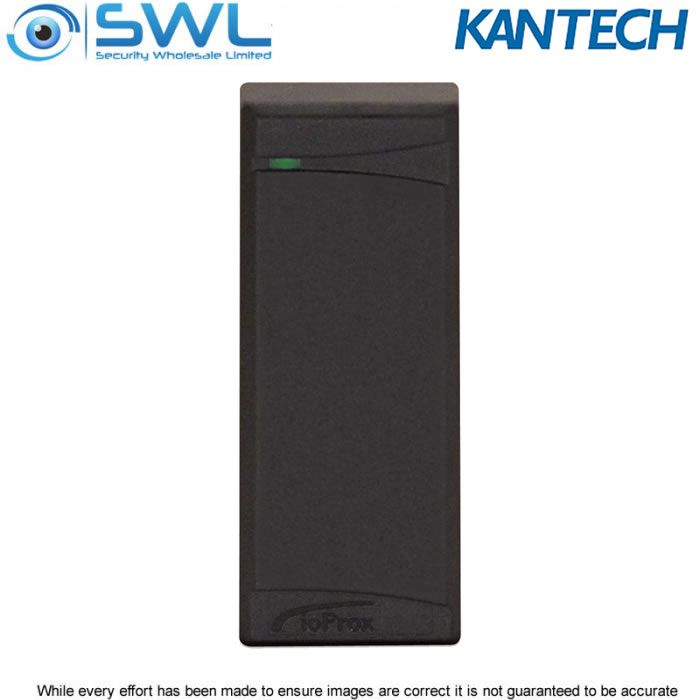

Kantech P225W26 ioProx Wiegand 26-bit Reader, Mullion, < 16.5cm Read Range
Stock Code:
17151
POA
Description
This Wiegand Reader seamlessly Integrates with Kantech access control systems, including door controllers, Kantech Telephone Entry System (KTES) & EntraPass software. IoProx cards are dual-encoded with both 26-bit Wiegand and XSF and are compatible with this reader.
ioProx Features:
* Compatible with dual-encoded 26-bit Wiegand & Kantech XSF prox cards* Digital Signal Processing (DSP) ensures quick & reliable card reading
* Readers have weatherproof, vandal-resistant design for indoor/ outdoor applications
* Some readers offer two-factor verification (PIN plus card)
* Bicolour reader LED & piezoelectric buzzer
* P40 Keytag design is resistant to cracking/ breaking
P225W26 Wiegand Mullion Specification:
* Reader Format: 26-bit Wiegand ONLY* Typical read range: Up to 16.5cm
* Input voltage: 4.5 to 14VDC
* Current DC maximum: 45mA
* Weight: 90g
* Colour: Black
* LED indicator: Bicolour (red and green)
* Piezo buzzer: Integrated
* Operating temperature: -35°C to 65°C
* Max. Cable Distance From Controller: 300m, 12VDC
* Reader Power: 12VDC
* Cabling: 3 twisted pairs, #22 AWG, unshielded, Belden ref #8742
* Tamper Switch: Optional P-TAMP
* Dimensions: 114.3mm x 44.5mm x 21.3mm
See ioProx Range Specification sheet below.
Please sign in to your SWL account to access installer manual.
