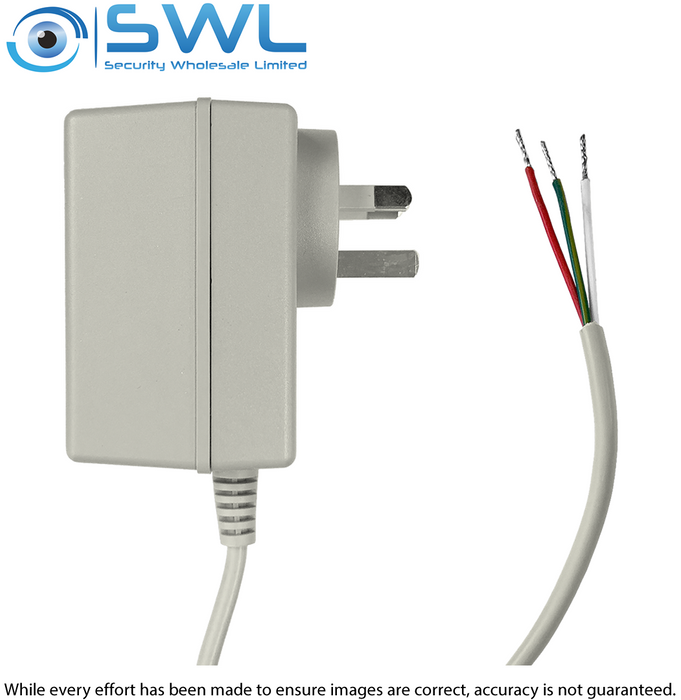

Powermaster 16V AC 24VA Plug Pack / Power Adaptor (Beige)

Stock Code:
11180
POA

Description

Powermaster 16V AC 1500mA Plug Pack, Power Adapter (24VA)

Configuration: Wall-Mount (integral mains pins).

* Mains Pins: AS/NZS3112:2004 (SAA) 3 pins, insulated active & neutral
* Dimensions: 77.9 (L) x 59 (W) x 78.0 (H)mm maximum
* Weight: 620g maximum
* Cooling: Natural Convection
* Thermal Fuse: 130°C 2A 250V
* Terminal Strength: AC Side 10Kg for 60 seconds No breakage shall occur after the completion of the test.

Drop Test: No abnormal condition should be found after a free-fall from a height of 75cm onto a 1cm thick (minimum) wood surface. After a total of 6 drop tests (one on each plane) the adaptor shall pass the insulation resistance test (100m minimum).

Cord Bending Test: The cord shall withstand a total of 1000 x 40 cycle per minute swings, from left to right, at an angle of 120° with a 300g weight attached.

Strain Relief Test: The cord shall withstand a weight of 9.1Kg attached to the cord end for one minute minimum. There shall be no visible or electrical damage.

DSC
This is the preferred specificattion for a DSC panel plug pack.
