DSC Neo: PG4945 Wireless 433MHz Door Contact c/w Auxilliary Input
Description

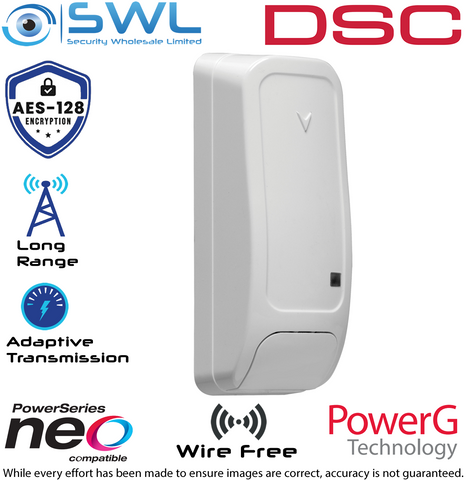

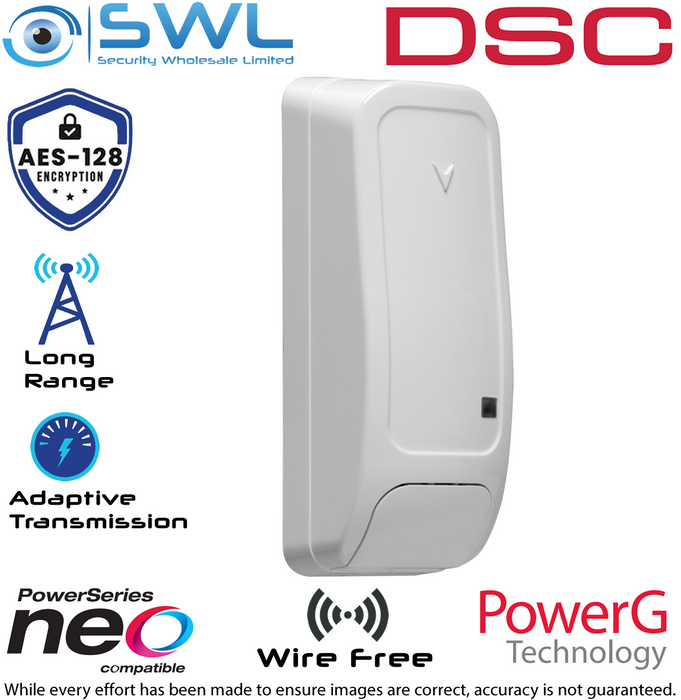

DSC Neo PG4945 Wireless Door Contact with Auxiliary Input
The PG4945 contact features an auxiliary input that can be used to easily connect a standard hardwired contact. The auxiliary input can be configured to be Normally Open, Normally Closed or Single End-of-Line. This feature is useful in installations where space is of a premium and it's difficult to mount the magnet within the maximum allowable gap of the contact.
* Selectable operation of auxiliary input as NO, NC or EOL supervision
* Visible link quality indicator shown on device
* Case and wall tamper
* User-selectable operation of auxiliary input as NC or EOL
* 1x CR123A Lithium - Lifespan 8 years, typical
* Back tamper switch options
* Dimensions: 81mm x 34mm x 25mm
Compatible Transceivers & Repeater
* HSM2HOST4 13350
* HS2LCDRFP4 13265
* PG4920 Repeater 13420
Specification sheet is borrowed from N.America (PG9945)
Please sign in to your SWL account to access installer manual.
