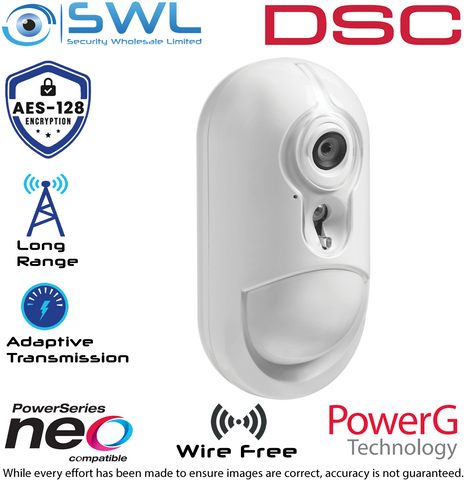

DSC Neo: PG4934P Wireless Indoor PET PIR c/w Integrated IR Camera: 12m, 90°
Stock Code:
13455
POA
Description
When the PG9934P is armed and the PIR sensor detects movement, the detector activates the camera, sends an alert to the system and images are sent via ethernet or
cellular to the monitoring station. The central monitoring station staff can then review the images to verify the alarm and respond accordingly.
PIR Specifications
* Up to 12m, 90°* Mounting Height: 1.8 to 2.1m
* Battery Life: Up to 3 years
* Battery Type::2 x 3V lithium CR123A
* Operating Temperature: -10° - 50°C
* Weight (including battery): 200g
* Dimensions: 125 x 63 x 60mm
* Approvals: FCC/IC, UL/ULC
Camera Specifications
* Camera Type: CMOS* Camera Range: 12m in daylight, 10m in darkness
* Color & resolution: Color/ Black & White:
* Frame Rate: Up to 2 frames per second
* Camera Angle: Wide angle 90° (overlaps PIR field of view)
Compatible Transceivers & Repeater
* HSM2HOST4 Transceiver 13350
* HS2LCDRFP4 13265
* PG4920 Repeater 13420
See specification sheet and Neo accessories below.
Please sign in to your SWL account to access installer manual.
