DSC Neo: HS2128 Alarm Panel - 8 to 128 Zone PCB Only
Description

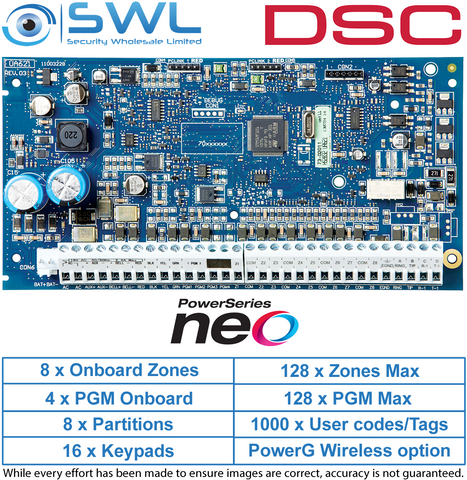

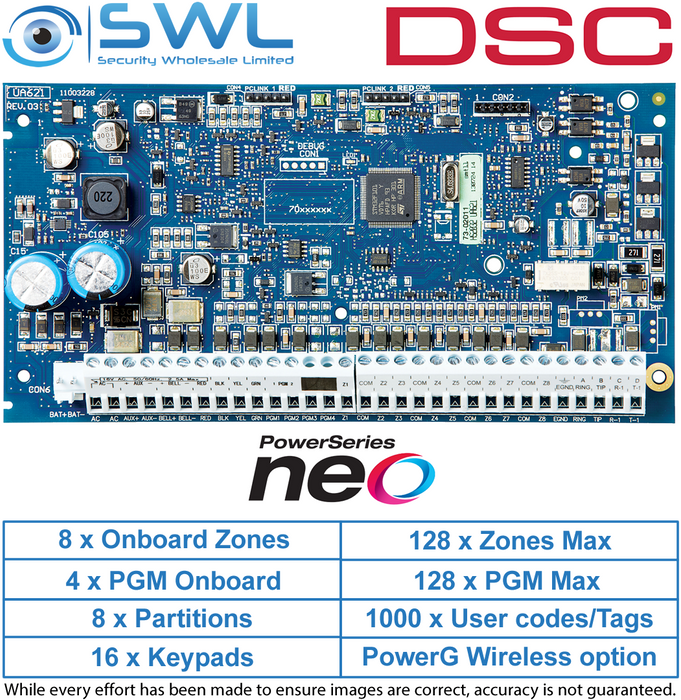

DSC Neo: HS2128E Alarm Panel - 8 to 128 Zone PCB Only
* 8 On-board zones
* Expandable to 64 H/W zones with 15x HSM2108 H/W zone expanders
* 8 Partitions
* Expandable to 128 hardwired or wireless zones total
* Supports up to 32 wireless Remotes 13325
* Expandable to 16 supervised keypads with keypad zones
* 4 PGM outputs: expandable to 148 (HSM2204, HSM2208)
* 1000-Event buffer
* SWL stocks 'Extended' memory version - 1000 user codes + master code, Mini Proximity Tags 13310
* Expandable to 4 power supply modules using HSM2300
Expansion
The model supports 128 hardwired or wireless zones. The controller is expandable to 128 zones by adding 15x HSM2108 hardwired 8 zone expansion modules or an HSM2HOST4 wireless expansion module. They are connected to the controller via a supervised 4-wire power / communication bus.
Please see specifications, user manual and further Neo accessories below.
Please sign in to your SWL account to access installer manual.
