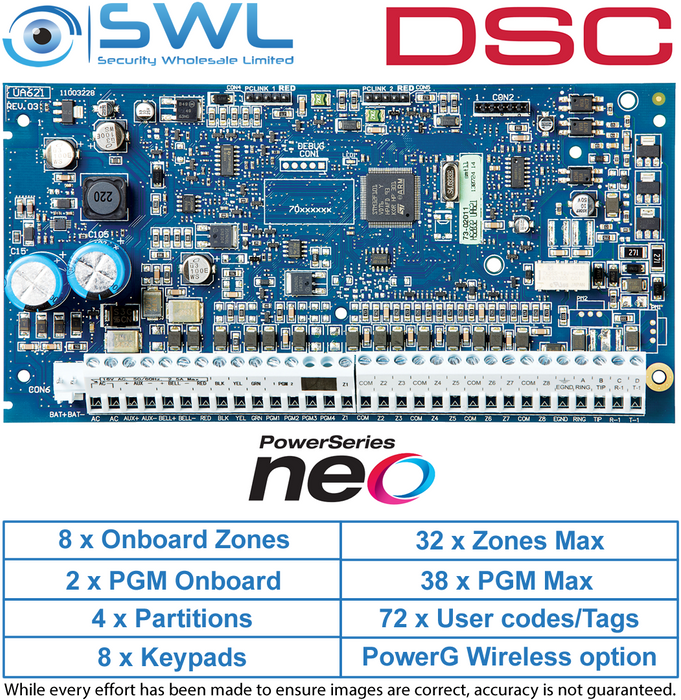

DSC Neo: HS2032 Alarm Panel - 8 to 32 Zone PCB Only
Description
DSC Neo: HS2032 Alarm Panel - 8 to 32 Zone PCB Only
• 8 On-board zones
• Expandable to 32 wireless & hardwired zones total with HSM2108
• 4 Partitions (each can have an account code)
• 2 PGM outputs: expandable to 38 (HSM2204, HSM2208)
• Connect up to 8 supervised keypads with keypad zones (assignable)
• 500-Event buffer,
• Supports 72 User codes, 71 Proximity Tags 13310
• 32 Wireless Remotes 13325 or Panic Pendants 13315 total
• Expandable to 8 Neo wireless sirens 13415
• Expandable to 3 power supply modules using HSM2300
Expansion
The controller is expandable to a maximum of 32 H/W or wireless zones, by adding 3x HSM2108 hardwired 8 zone expansion modules or an HSM2HOST4 wireless expansion module. They are connected to the controller via a supervised 4-wire power / communication bus.
Please see specifications, user manual and further Neo accessories below.
Please sign in to your SWL account to access installer manual.
