Double Pole 1 Amp Multi Function Timer Kit RLDP-V & CB1
Stock Code:
09090
POA
Warranty Details:
1 Year Return to Base
Description

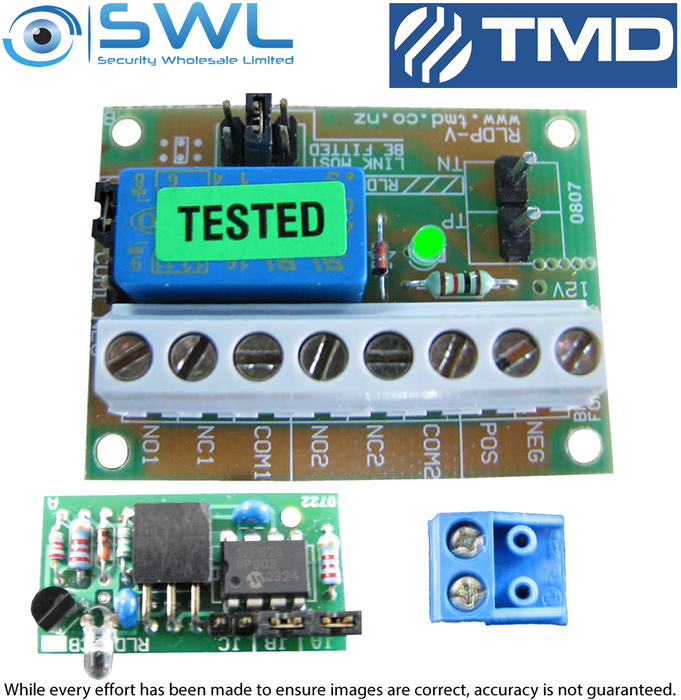

Kit Includes:
1 x 09088 RLDP-V Double Pole Relay
1 x 09086 CB1 Control Board Timer
Features:
* Microprocessor control board plugs into RLDP-V double pole relay board to become multifunction timer.* Compact size, modular design
* Timeout: 1-900 secs, 1-180 mins, 1-18 hours
* Rising and falling edge triggers
* Simple programming method
* Selectable 12V/24V DC operation
* High quality screw connectors
* LED indicator to show timing status
* Eight (8) versatile modes of operation:
1. Buffered Input
2. Flip Flop
3. One Shot
4. One Shot (retriggerable)
5. Pulse Extender
6. Delay Start
7. Delay Start (retriggerable)
8. Stand-Off (door open too long)
Approximate dimensions when assembled: L x W x H: 48 x 40 x 23mm.
