Sherlotronics RX4-500 433MHz 4 Channel Receiver
Sherlotronics RX4-500 Long Range 4 Channel Receiver 433MHz

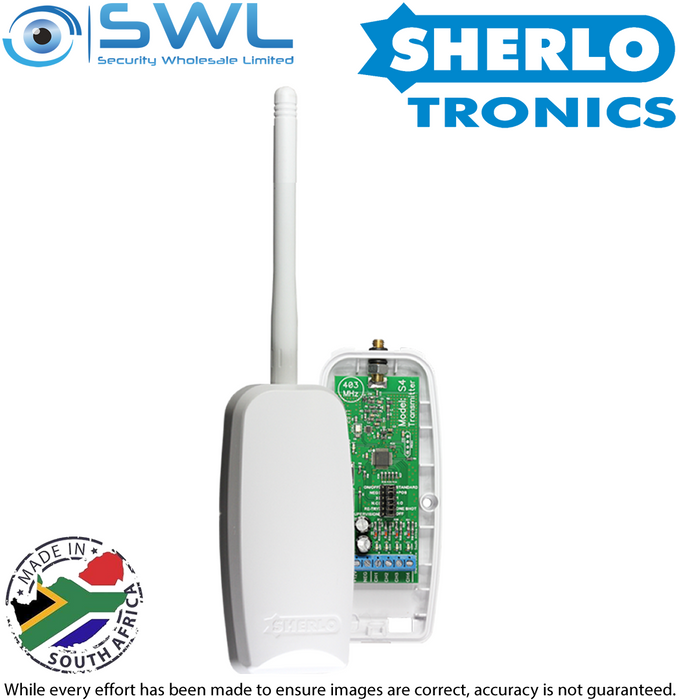

Available in either Single Channel or 4-Channel. The unit is weatherproof and is supplied with a rubber duck antenna. This product is suitable for larger sized properties needing the ultimate in performance, quality and range.
* Code hopping Encryption
* Latch or Momentary
* Selectable Momentary times: 1 Sec; 3 Secs; 1 min; 3 mins; ON/OFF
* Buzzer tone
* Crystal Controlled +/- 100KHz
* Frequency: 433MHz
* 12 - 24V AC/DC input
* Weatherproof housing
* Range : 500m (Open air)
* Voltage Range : 9.8V to 26V AC/DC
* Dimensions: 187mm x 104mm x 67mm
* Gross Weight : 235 grams
* Operating Temp : -3°C to 65°C
* Input Voltage Range 12 - 24V
* Relay contact rating 1A
* Memory Capacity : RX1-500/80 Remotes - RX4-500/64 Remotes
* Outputs : 4 Dry Relays
* Current draw : 20mA
* Warranty : 24 Months
NB: 403MHz not supported in NZ.
Please sign in to your SWL account to access installer manual.
