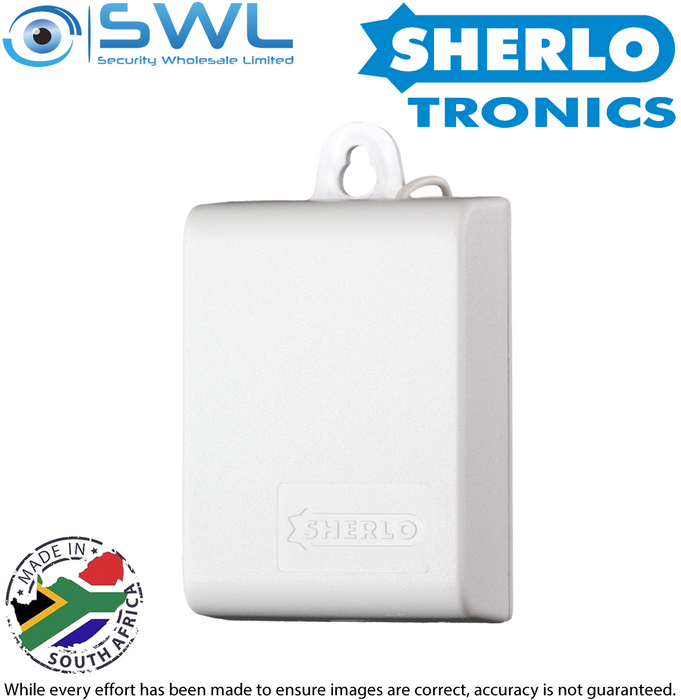

Sherlotronics S1 433MHz 1 Channel Transmitter (100-500m) - Indoor
Description
2021 Versio: PCB ver 2.3 Stand Alone Transmitter, with On/ Off & Supervision
Designed to be wired up to Electric fence Alarm outputs, Switches, Motion Detectors, Magnetic door contact switches, the S1 will suite applications that require just a single Channel wireless linkup.
Applications:
* Transmission of Alarm signals
* Linking Electric Fence outputs to Alarms
* Switching On / Off Pumps on farms
* Industrial Machinery Control
* Wireless control of Generators
Features:
* Input Voltage: 12V DC
* <500m line of sight
* <100m indoors
* Code-Hopping Encryption
* 1-Channel output
* Normally open or Normally closed inputs
* 4 Way dipswitch to control Positive / Negative trigger input selection
* LED indication when unit is triggered
* All inputs are supervised
* Dimensions: 100 x 60 x 25mm
Certifications:
ETSI EN300 220-V2.4.1
ETSI EN301-489-3 V1.4.1
ETSI EN301-489-1 V1.9.2
IEC 60950-1:2005 + A1:2009
ICASA: TA-2017/1755
Go to 'Our Brands' page for technical manuals HERE
