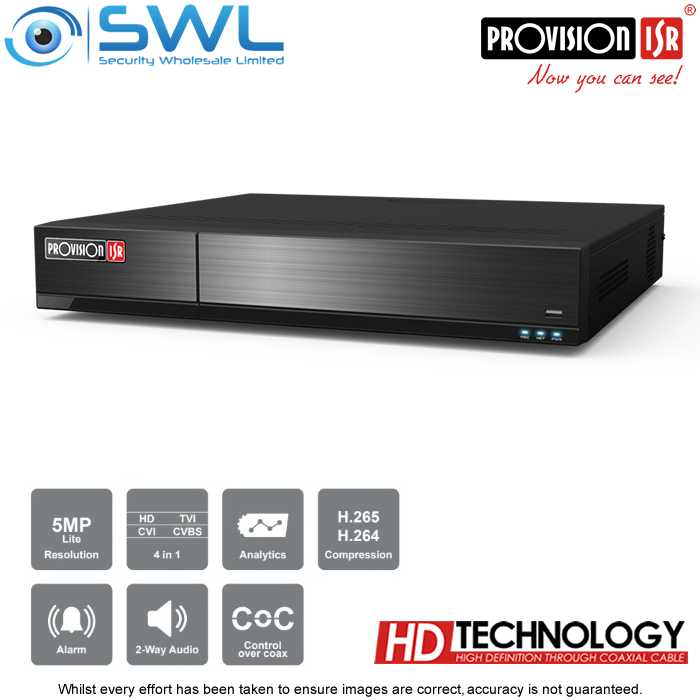

Provision-ISR SH-32400A5-5L(1.5U): 32CH Hybrid DVR 32x AHD +4CH IP 8x HDD. No HD
Stock Code:
33755
POA
Warranty Details:
1 Year Return to Base
Description
Provision-ISR SH-32400A5-5L(1.5U)-V2 is a high-quality dynamic hybrid digital video recorder in an elegant 1U case. This technology allows users to add advanced IP cameras alongside analogue ones and enjoy high-quality images and other advanced features available on IP cameras only. The recorder supports Provision-ISR Standard Video Analytics (Pixel Based).
Features:
* Video Input Max Analogue: 32CH Analogue BNC + 8CH IP* Video Input Max IP: 6CH IP (over network) + 0CH BNC.
* Bandwidth: Incoming 40Mbps, Outgoing 160Mbps
* Recording HD Analogue
A) 3K/5MP Lite: Up to 10FPS Per Channel
B) 4MP Lite / 2MP: Up to 12/15FPS Per Channel
C) 2MP Lite / 1MP: Up to 25/30FPS Per Channel
D) CVBS: 960H: Up to 5/30FPS Per Channel
* Recording IP: 5MP and lower @ 25/30FPS Per Camera
* IP Analytics: DDA1 (Human & Vehicle Recognition) Tripwire and Sterile Area Rules
* Channel Playback: Local, 4CH Simultaneously. Remote: 4CH Simultaneously
* Search Modes: Time-Slice, Time, Event, File Management, Smart Search
* Video Output: HDMI , VGA,CVBS
* Audio Input: 4 RCA In + IPC. Output: 1 RCA + IPC
* Alarms: 4x Input & IPC Cameras. 1 Output & IPC
* Storage: 4x SATA HDD (Up to 8Tb)
* Storage: 1x E-SATA (Up to 8Tb)
* Network: 1x RJ-45: 10/100Mbps
* PTZ Support: RS-485 / CoC / IP over Network
* Power Supply: DC12V/4A
* Dimensions: W440 x D390 x H80mm
* APP Support: Provision CAM2 for iOS/ Android
Storage, Monitor & UPS Options:
* 2Tb 46073* 4Tb 46075
* 6Tb 460751
* 8Tb 460752 Max
* Provision-ISR 24" Ultra-Thin Monitor: 50008
* EATON 5E UPS 700VA/360W, 2x NZ OUTLETS 13071
* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
