Trojan Em Rex: Emergency Door Exit Release Unit
Stock Code:
57292
POA
Description

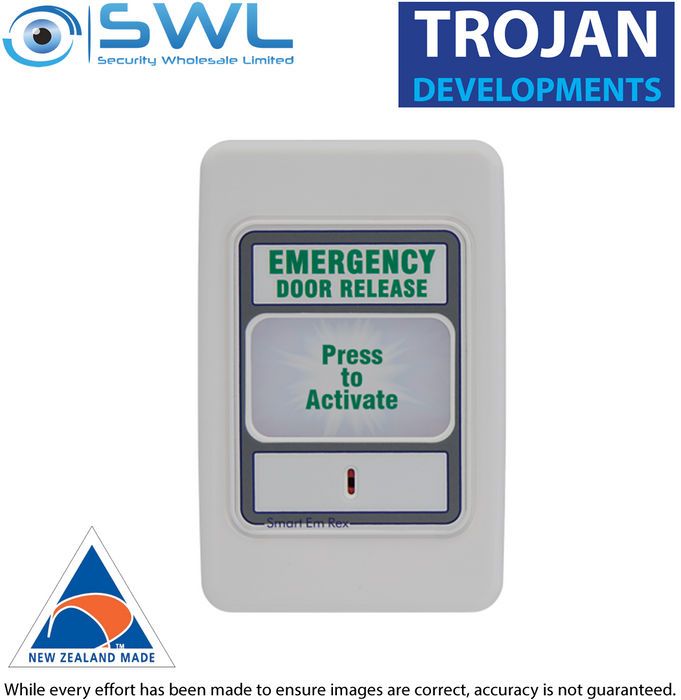

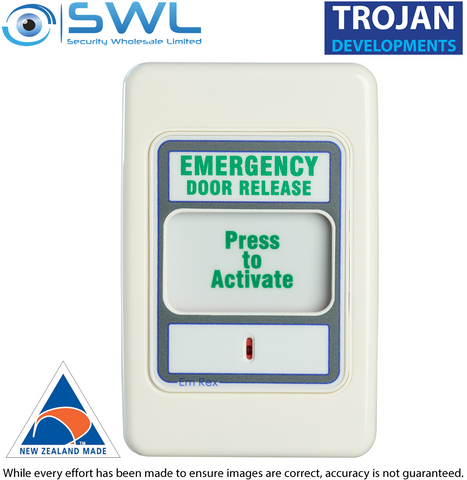

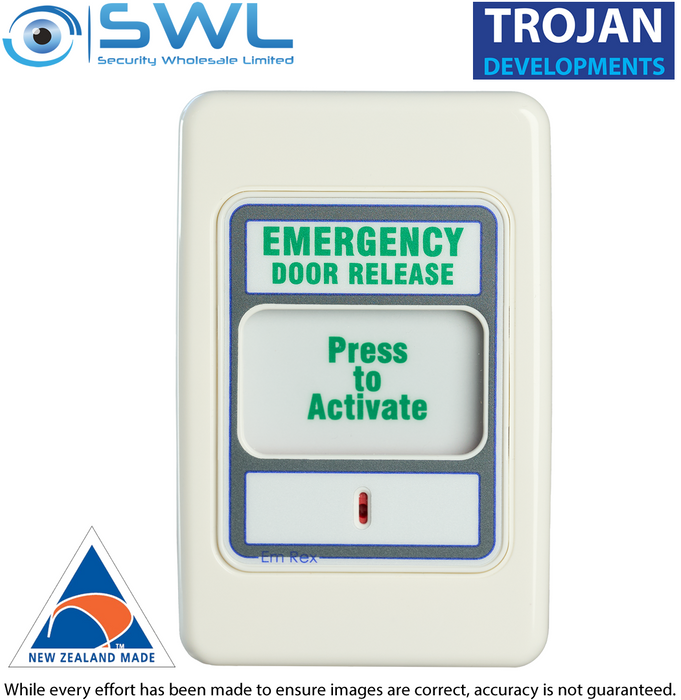

The Em Rex® (Emergency Exit Device) is an emergency door release unit which can be used on its own or in conjunction with the Prox Rex ® units, to make up a total access controlled exit solution.
Features:
* Field resettable unit* No breaking of glass when operated
* Two outputs; one set to break lock power and one set for status monitoring
* Visual confirmation of activation
* Audible confirmation of activation
* Ancillary input for remote operation of sounder
* Minimal moving parts
* Re-set tool supplied (additional tools 57308)
* Single gang profile fits standard electrical flush box
* Power requirements 9 to 16Vdc (only if using on board sounder)
* 10mA at 13.6V DC
* Clean N/O and N/C outputs
* The contacts are rated at 1A @ 30V DC
* The face plate will not deteriorate over time and is easily cleaned
* C-Tick Certified & complies with BS 5839 Pt 2. Standard for “Break-Glass Panels”
Weatherproof Accessory:
* Clear Polycarb Protective Cover: WEC140 57250
