WI-PS306GF-UPS-15A(V2): 5 Port PoE Switch For Solar Solution 52150
Stock Code:
52410
POA
Description

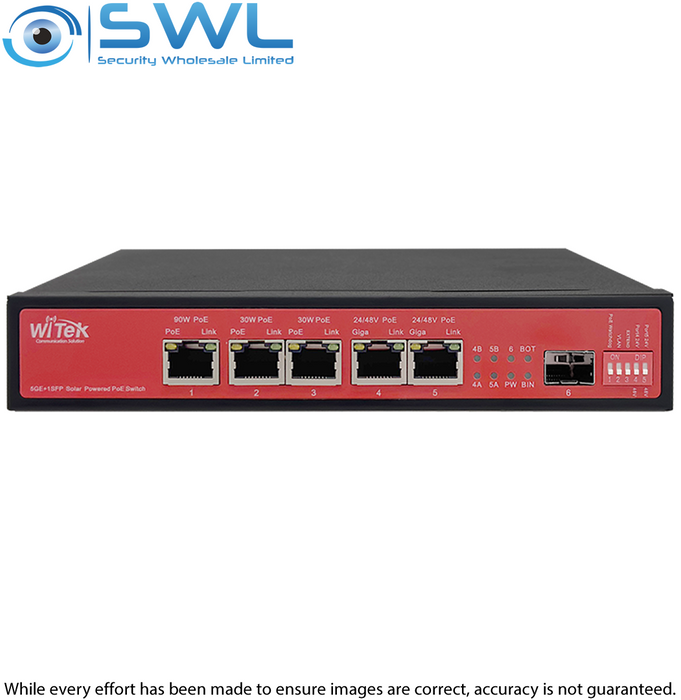

Wi-Tek WI-PS306GF-UPS-15A(V2) Unmanaged Gigabit Network PoE Switch with 5* GbE PoE Ports + 1* SFP Slot – 12VDC/24VDC Solar Powered – Built-in MPPT Controller – 120W PoE Output
Features:
* 1 x 1000Mbps IEEE 802.3bt 90W PoE RJ45* 2 x 1000Mbps IEEE 802.3af/at 30W PoE RJ45
* 2 x 1000Mbps IEEE 802.3af/at 30W PoE or 24V passive 24W PoE RJ45
* 1 x 1000Mbps SFP
* 1 x RS-485 for WI-IOT100 to cloud management
* 2 x Photovoltaic input, 1* Battery charging & discharging
* 120W max for whole switch PoE power budget
* 15A max for battery charging current
* Support PoE watchdog, Port VLAN, Extend function
** Note – Use WI-IOT100 52500 with this switch for battery & solar output monitoring
