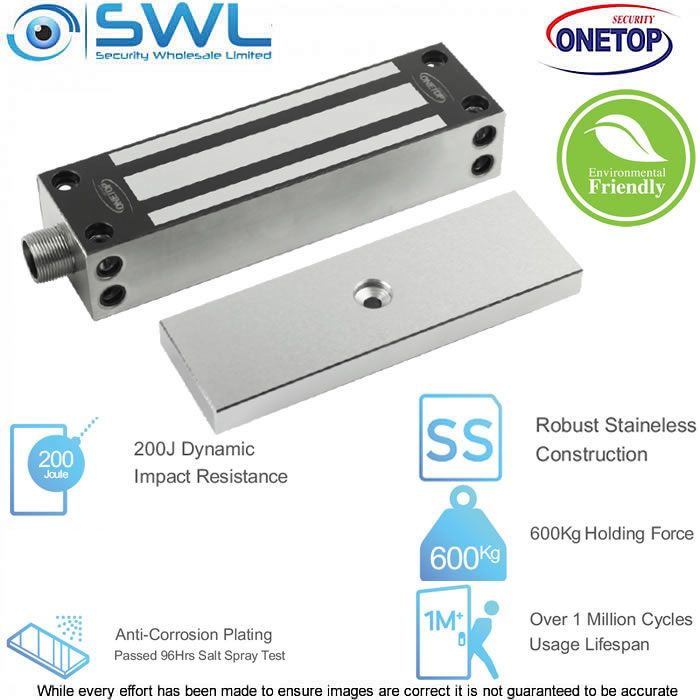

ONETOP EM5000G/LF: Environmental Friendly 600Kg OUTDOOR Mag Lock 12/24VDC
Description
The EM5000G/LF series are dual operating 12/24VDC Fail-Safe electromagnetic lock in stainless steel encase body, highly quality plated for more corrosion resistant and instantly release to unlock when powered OFF without any residual magnetism. The lock fixing arrangement can be on the front or side, for use on swing or sliding interior or exterior gate perimeter security with Lock status monitoring sensor and built-in surge protection. This new design has been tested to be fire rated for 3 hours and product has been classified to be environmental friendly.
Features:
* Surface Finish - Full weather resistant stainless Steel finish, Electrogalvanization to prevent from rusting
* Lock Status: Output COM/NO/NC: Max 24VDC; Max 1A
* Operating Conditions: -10°C ~ 60°C, Humidity: 0 ~ 85% (non-condensing)
* Holding Force 600Kg
* Operating Voltage: 12/24VDC ±10%
* Operating Current: 12VDC – 480mA or 24VDC – 240mA
* Impact Resistance: 200J
Environmentally Friendly Features:
* Non-epoxied potted electromagnet,* Recyclable metal to make it truly environmentally green friendly,
* Carbon neutral with everything recyclable,
* Electromagnets are 100% fire rated as there is no plastic combustible materials to catch fire.
