ONETOP EM3500 DSS/F: Environmental Friendly 280Kg Mag Lock 12/24VDC

Stock Code:
57600
POA

Description

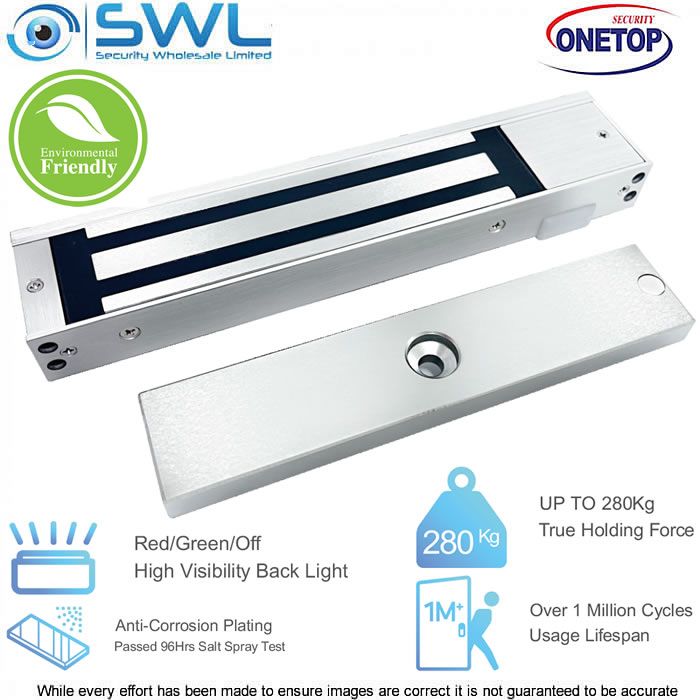

The EM3500/F single and double swing surface mount electromagnetic lock operates on 12 or 24 VDC setting on a highly visible LED backlight. It has both Lock status sensor (LSS) and Door status sensor (DSS). Electromagnetic lock & armature plate are quality plated to operate over a million operation that instantly release to unlock when powered OFF without any residual magnetism. This new design has been tested to be fire rated for 3 hours and product has been classified to be environmental friendly.

Features:

* Surface Finish - Anodized Aluminum Housing, High Quality Plating for Anti-corrosion (96 Hrs Salt Spray Corrosion Tested)
* Holding Force 280Kg
* High Visibility Light Shows The Lock Status Red - Locked, Green Unlocked
* Lock Status: Output COM/NO/NC: Max 24VDC; Max 1A
* Door Status: Output COM/NO: Max 24VDC; Max 0.2A
* Operating Conditions: -10°C ~ 60°C, Humidity: 0 ~ 85% (non-condensing)
* Operating Voltage: 12/24VDC ±10%
* Operating Current: 12VDC – 510mA or 24VDC – 270mA

Environmentally Friendly Features:

* Non-epoxied potted electromagnet,
* Recyclable metal to make it truly environmentally green friendly,
* Carbon neutral with everything recyclable,
* Electromagnets are 100% fire rated as there is no plastic combustible materials to catch fire.

Stock Level:
In Stock
