Description
DSC PowerSeries PRO is a Commercial scale hybrid Intrusion solution; supporting both wired and proven PowerG wireless device technology, flexible integration possibilities and an agile scaleability to protect sites of most sizes. It’s an ideal 'take-over' solution; leveraging its flexible end-of-line reistance values, zone and partition expansion and of course, supporting out-of-the-box 'on board' encrypted IP communications.
PowerSeries PRO uses robust PowerG technology to provide long-range wireless communications. The entire system is protected by 128-bit AES 'military grade' encryption on wired BUS, PowerG wireless devices, IP and cellular communications. For added reliability and to prevent tampering, PowerSeries PRO is equipped with triple-end-of-line capability for hardwired zones and anti-masking for both wired and wireless zones. This ensures full premises intrusion detection and enhanced cyber-security protection. In an era of increasing 'external threats', PowerSeries PRO aims to provide a truly secure solution.

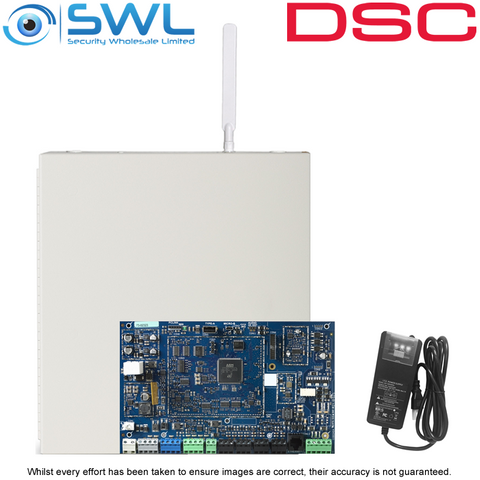

PRO 'BASE' KIT
* Main Panel, HS3248PCB: Specifications below.* Appropriate Cabinet, HSC3020C: 143911
* 65W Power Supply, HS65WPS Adapter: 143910
Add your preferred 12v back-up battery Century SLA Batteries; keypads, expanders, additional power supplies and wireless capability as required.
Panel Specifications:
* On Board Zones: 8* Maximum Zones: Expand up to 248: 143912
* Maximum Partitions: 32
* Maximum Wireless Zones: 128
* Users: 1000
* On Board PGM: 4
* Max. Low Current PGMs (HSM2208): 128
* Max. High Current PGMs (HSM2204): 16
* Max Relay PGMs (HSM3204CX): 32
* Event Buffer: 1000 events
* Priority Buffer: 2000 events
* Arming Buffer: 100 events
* Cellular Plug-in Interface: 1
* On-Board Ethernet Connection 10MB/ 100MB/ 1GB: 1x Output
* USB Connectors: 2
* ULC Wireless Commercial Burglary Level 1, 2 & 3 Approval (ULC-5304-16)
PRO Accessories:
* HSM3408: 8 Zone Expander With Removable Terminal Blocks 143912* HSM3204CX: 2 Amp Power Supply BUS Extender with 4 Relay Outputs 143913
* HSM3350: 3 Amp Power Supply with HS65WPS 143914
PowerSeries Pro Reference Manual
