Avigilon 12.0-H4F-DO1-IR 12Mp Fisheye Camera IR 10m IP66 IK10 1.45mm

Stock Code:

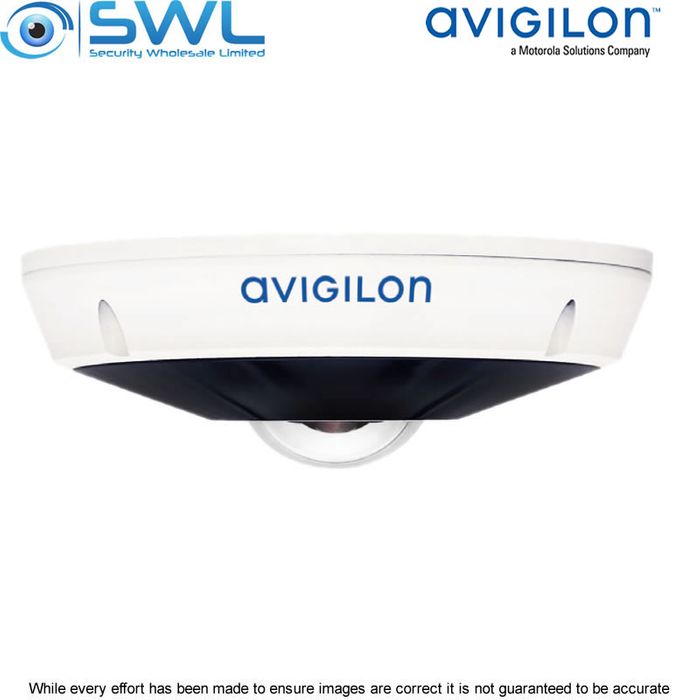

Avigilon H4F 12Mp 360° IP66 IK10 Fisheye Camera.

2016 YouTube Link to Fisheye Range Video 2:11

Avigilon's™ low-profile design H4 Fisheye camera is designed to provide a high resolution 360-degree panoramic view of a scene with no
blind spots. It delivers exceptional image quality even in harsh conditions and poor lighting conditions. Its content adaptive IR technology provides effective brightness, maintaining excellent scene illumination in dark environments. Powerful de-warping coupled with virtual PTZ technology allows easy navigation through live or recorded video. This camera is ONVIF Profile T compliant.

The H4 Fisheye is a cost-effective, easy-to-install solution designed to provide clear image detail and broad coverage with fewer cameras.

Key Features:
* Resolution - 1/2.3" 12Mp Progressive CMOS.
* Lens / FOV - 1.45mm, F/2.2. 360° (H).
* Min Illumination - 0.75 Lux, 30 IRE in colour mode. 0.01 Lux 30 IRE in monochrome.
* IR Capability - Up to 8m with PoE (10m PoE+ & 12VDC). Scene adaptive IR technology.
* Video Format - H.264.
* Day/ Night, WDR- 60dB.
* Storage - Micro SD +. Class 10 or better recommended.
* External I/O- Alarm In/ Alarm Out.
* Audio Support - Line level input/ output, A/V mini-jack (3.5 mm). G.711 PCM 8 kHz.
* Bandwidth Management - HDSM 2.0, Idle Scene Mode.
* Power - PoE, PoE+, 12VDC. Max 25.5W.
* Ingress Rating - IP66 and IK10 vandal resistance.
* Dimensions - Camera: 160mm x 51mm. Camera/ NPT: 160mm x 124mm.
* Security 1 - Password protection, HTTPS encryption, digest authentication.
* Security 2 - WS authentication, user access log, 802.1x port based authentication.
* View Adjustment - Configure the de-warp for ceiling, wall or floor.

Mounting Options:

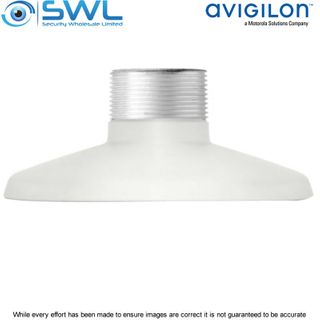

* H4F-MT-NPTA1 Pendant Mount Adapter 47378
* CM-MT-WALL1 Pendant Wall Mount Bracket 47379
* H4F-MT-NPTA1 Ceiling Pole Mount 47378 to female 1-1/2" NPT threaded pipe..

For full details please see specification sheet below.
