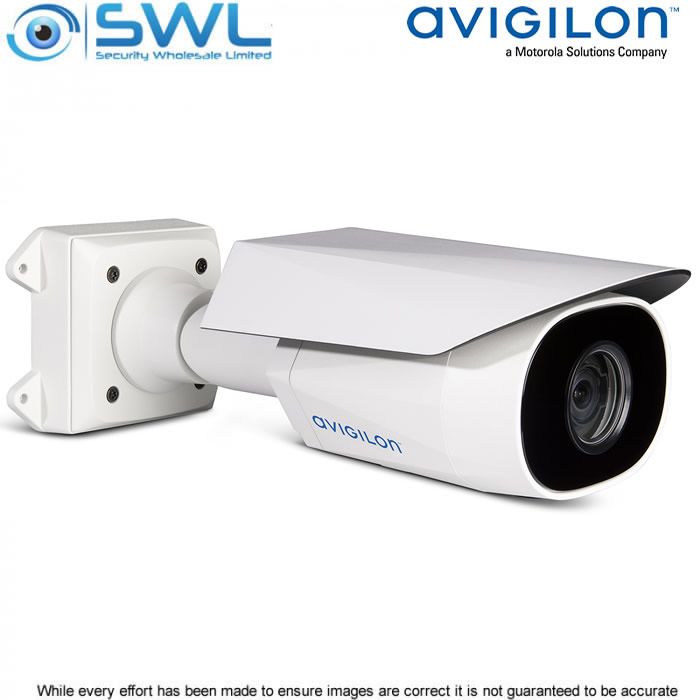

Avigilon 5.0C-H5A-BO2-IR 4Mp Bullet: Video Analytics WDR IR90m IP67 IK10 9-22mm
Description
5.0C-H5A-BO2-IR Bullet: Video Analytics WDR IR 90m IP67 IK10 9-22mm
YouTube Link to H5A Range Video 2:21
Avigilon H5A Bullet cameras feature Avigilon's next-generation of video analytics technology which can detect more objects with greater accuracy even in crowded scenes, whether as stationary or moving objects. They will classify: People, Cars, Trucks, Motorcycles, Bicycles and Buses. Manufactured in North America, H5A cameras come with a 5-year warranty. They are equipped with Triple Exposure Ultra-Wide Dynamic Range (WDR) and patented LightCatcher technology. Embedded with self-learning video analytics, H5A cameras seamlessly integrate with Avigilon Control Center (ACC).
Key Features:
*
* .
* .
* .
* .
*
* ONVIF Compliance - v1.02, 2.0, Profiles S & T.
* Storage - Micro SD +. Class 10 UHS-1 or better recommended.
* External I/O- Alarm In/ Alarm Out.
* Audio Support - Line level input/ output, A/V mini-jack (3.5 mm). G.711 PCM 8 kHz.
* Bandwidth Management - HDSM SmartCodec Technology. Idle Scene Mode.
* Power - PoE, 12VDC, 24VAC. Max 13W.
* Ingress Rating - IP67. IK10 impact rating (vandal resistant).
* Dimensions - 280mm x 126mm x 91mm (including bracket).
* Security 1 - Password protection, HTTPS encryption, digest authentication
* Security 2 - WS authentication, user access log, 802.1x port based authentication
Mounting Options:
* H4-BO-JBOX1 Wall Mount Back Box 46840
* H4-MT-POLE Pole Mount Adapter 46785
* H4-MT-CRNR1 Corner Mount Adapter 46784
Supported Analytic Events:
* Objects in an area: Triggered when selected object type moves into region of interest (ROI).
* Object loitering: Triggered when selected object type enters and remains for a defined period in ROI.
* Objects crossing beam: Triggered when specified # of objects has crossed specified beam.
* Object appears/ enters area: Triggered by each object that enters the ROI.
* Object not present in area: Triggered when no objects are in the ROI.
* Objects entered area: Triggered when specified # of objects have entered the ROI.
* Objects leave area: Triggered when specified # of objects have left the ROI.
* Object stops in area: Triggered when an object moves into a ROI and stops moving (defined).
* Direction violated: Triggered when object moves in prohibited direction.
* Tamper Detection: Triggered when scene unexpectedly changes.
ACC 6.14.12. All supported analytic events with classified 'person or vehicle'. Appearance Search. H.265.
ACC 7.2. All supported analytic events with people and all sub-categories of vehicles classified. Appearance Search. H.265.
