Avigilon 8.0C-H5A-DO1-IR 4K O/D Surface Dome: Analytic IR30m IP67 IK10 4.9-8mm
Description

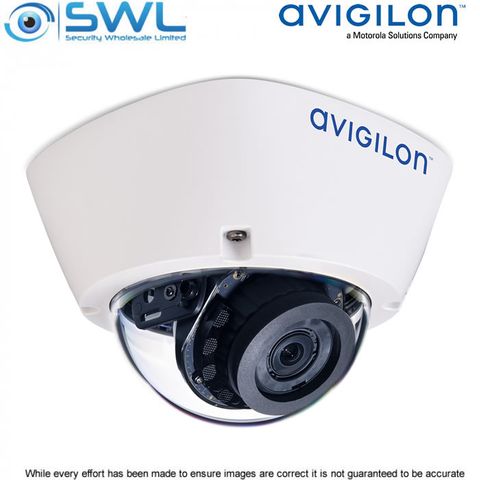

Avigilon 8.0C-H5A-DO1-IR 4K Outdoor Surface Mount 4K Dome Camera.
YouTube Link to H5A Range Video 2:21
H5A outdoor 4K surface mount dome cameras feature Avigilon's next-generation of video analytics technology which can detect more objects with greater accuracy even in crowded scenes, whether as stationary or moving objects. They will classify: People, Cars, Trucks, Motorcycles, Bicycles and Buses. Manufactured in North America, H5A cameras come with a 5-year warranty. They are equipped with Triple Exposure Ultra-Wide Dynamic Range (WDR) and patented LightCatcher technology. Embedded with self-learning video analytics, H5A dome cameras seamlessly integrate with Avigilon Control Center (ACC).
Key Features:
* Resolution - 1/1.8" 8Mp Progressive CMOS.
* Lens / FOV - 4.9-8mm motorised. 52°- 92° (H). 29°- 51° (V)
* Min Illumination Lux - 0.055 in colour, 0.028 in monochrome mode. 0 with IR
* IR Capability - 15m (full wide) - 30m (full tele)
* Video Format - H.264 & H.265 SmartCodec
* Day/ Night, WDR - 120dB WDR
* ONVIF Compliance - v1.02, 2.0, Profiles S & T.
* Storage - Micro SD +. Class 10/ UHS-1 or better recommended.
* External I/O- Alarm In/ Alarm Out.
* Audio Support - Line level input/ output, A/V mini-jack (3.5 mm). G.711 PCM 8 kHz.
* Bandwidth Management - HDSM SmartCodec Technology. Idle Scene Mode.
* Power - PoE, 12VDC, 24VAC. 11W (No IR). Max 13W with IR on.
* Ingress Rating - IP67. IK10 impact rating (vandal resistant).
* Dimensions - 163mm x 163mm x 121mm.
* Security 1 - Password protection, HTTPS encryption, digest authentication.
* Security 2 - WS authentication, user access log, 802.1x port based authentication.
Mounting Options:
None. Outdoor surface mount only. Cannot be pendant mounted.
Supported Analytic Events: ROI = Region of Interest.
* Objects in Area: Triggered when selected object type moves into ROI.
* Object Loitering: Triggered when selected object type enters & remains for a defined period in ROI.
* Objects Crossing Beam: Triggered when specified # of objects has crossed specified beam.
* Object Appears/ Enters Area: Triggered by each object that enters ROI.
* Object Not Present in Area: Triggered when no objects are in ROI.
* Objects Entered Area: Triggered when specified # of objects have entered ROI.
* Objects Leave Area: Triggered when specified # of objects have left ROI.
* Object Stops in Area: Triggered when an object moves into ROI and stops moving.
* Direction Violated: Triggered when object moves in prohibited direction.
* Tamper Detection: Triggered when scene unexpectedly changes.
ACC 6.14.12 - All supported analytic events with classified 'person or vehicle'. Appearance Search. H.265.
ACC 7.2 - All supported analytic events with people and all sub-categories of vehicles classified. Appearance Search. H.265.
