Avigilon VMA-AS3-16P09-AU 16ch Appliance NVR. 9Tb Storage & 16 PoE Ports
Description
Avigilon VMA-AS3-16P09-AU: 16 PoE & 9Tb - No ACC Onboard Licences
The new generation of Avigilon Video Appliances provide an all-in-one security solution with improved performance and higher capacity reducing installation time and overall complexity of the surveillance system. The Appliance line integrates Avigilon's ACC™ video management software with a high-powered PoE switch and a client workstation to provide a cost effective recording and video management solution capable of supporting multimegapixel IP cameras, up to our industry-leading 7K (30Mp) HD Pro camera line.
Quick Specification:
* ACC Edition - Core, Standard & Enterprise - sold separately
* Recording Rate - Up to 300Mbps
* Playback Rate - Up to 100Mbps
* Max Image Rate - 30 fps
* Operating Systems - MS Windows 10 IoT Enterprise
* SSD - Onboard solid state drive volume ensures high speed operation
* Storage - 9Tb (see other models for higher storage) RAID 5
* Maintenance - Front accessible hard-drives
* Video Outputs - 2x HDMI ports
* PoE+ Ports - 16x 10/100/1000 Mbps (IEE802.3at)
* PoE Port Budget - Up to 30W max
* PoE Total Budget - Max 240W delivery

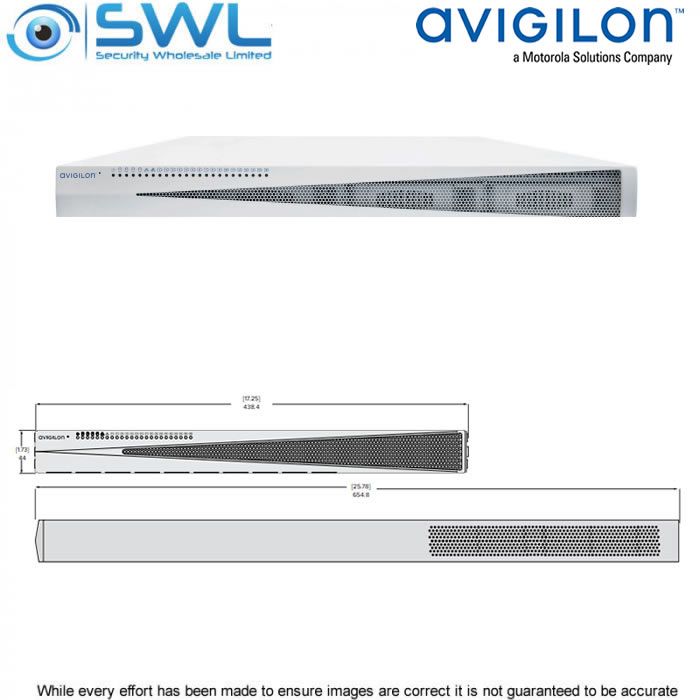

* Dimensions - 654mm x 438mm x 44mm
Licensing:
* ACC 6 - Specify licence edition and quantity (16, 8, 4 & single units).
* ACC 7 - Specify licence edition and total quantity.
Mounting Options:
Rack Mount - Mounting Rails RAILS-B-AS3-16/24P (supplied with VMA).
Wall mount
See specification sheet and alternative 16 port PoE Appliances below.
