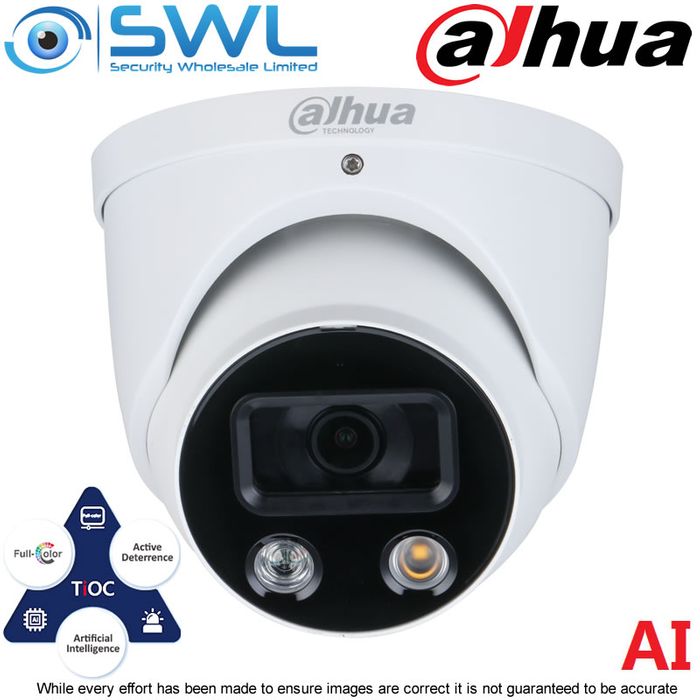

Dahua IPC-HDW3449H-AS-PV:4Mp Full Colour TiOC Eyeball WDR LED 30m IP67 2.8mm
Description
ACTIVE DETERRENT: IPC-HDW3449H-AS-PV:4Mp Full Colour TiOC Eyeball WDR LED 30m IP67 2.8mm
TiOC, also known as Three-in-One Cameras, integrate 24/7 full-color monitoring, active deterrence and AI into one smart and innovative solution, greatly saving time and financial costs. TiOC can accurately identify potential risks and effectively warn off intruders.
Key Features:
* Resolution - 1/1.27" 4Mp CMOS - FULL COLOUR
* Lens / FOV - 2.8mm fixed. 103° (H), 53° (V)
* Video Format - H.264 to H.265+
* Min Illumination - 0.003 Lux/F1.0
* Max LED Distance - Up to 30m, 1x White Light LED illuminator
* SMD Plus - Uses an advanced algorith to reduce false positives
* Day/ Night, WDR - 120dB WDR
* AI Perimeter - Tripwire, Intrusion (Human & Vehicle Classification)
* AI People Counting - Line crossing/ Region/ Queueing people counting
- 4 areas of independent detection
* IVS / General - Object abandoned / Missing
* SD Storage - Micro SD card up to 256GB
* Audio - 1 channel in/out (RCA ports)
- Microphone & Speaker: Multiple deterrent messages & voice customisation
- PCM; G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723
* Alarms - 1 channel in: 5mA 3v-5v DC. 1 channel out: 300mA 12v DC
* Light Alarms - Can flash alternate BLUE & RED LED on event trigger
* Power - PoE, 12VDC, Max 8W LED on with audio alarm
* Dimensions - 122 x 122 x 111mm
* Ingress Rating - IP67. Aluminium casing
Suitable for Smartbox NVRs. Pair with Pro (5XXX) and Ultra (6XX) NVRs for all physical alarms.
Accessories
* IP66 Slim Back Box: PFA130-E 43672
* IP66 Thick Back Box: PFA122 436711
* Indoor Back Box: PFA137 436741
* Wall Mount Bracket: PFB205W
* Corner Mount: PFA151 436701
* Pendant Mount (A): PFA106
