Avigilon 4-Port Analogue Video Encoder ENC-4P-H.264
Description
ENC-4P-H.264

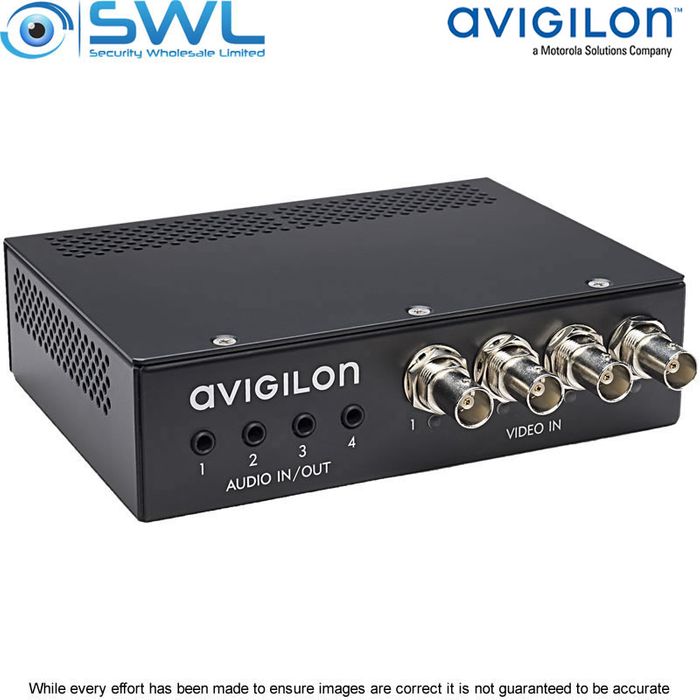

Avigilon H.264 4-Port Encoder
The Avigilon H.264 analogue video encoder is designed to integrate analogue cameras into an IP system. It transmits images over 100BASE-TX using H.264 technology to achieve the lowest network bandwidth. It requires minimal storage for video at high frame rates with superior image quality. The encoder supports NTSC and PAL video standards. It also uses an industry-leading motion adaptive 3D de-interlacing algorithm to produce sharper and more accurate video. There is an RS-485 interface for PTZ support and an external I/O interface for connecting alarms and relays.
The encoder seamlessly integrates with Avigilon Control Center (ACC) and other NVRs. ONVIF compliance provides support for other leading VMS platforms. Powered by either PoE, 12VDC or 24VAC, up to 3 units can be stored on a single 1U rack mount with an optional bracket.
** Encoder requires only one channel licence in Avigilon Control Centre, regardless of the number of analogue cameras connected to it.**
Key Features:
* 4 BNC video inputs.
* Max resolution 720 x 480 (NTSC) or 720 x 540 (PAL).
* Supports up to 30 fps for each port.
* H.264 and motion JPEG compression.
* ONVIF compliant API.
* Supports PTZ cameras via RS-485 interface.
* Up to 4 privacy zones available per channel.
* 4 audio input & output channels.
* External I/O terminals.
* PoE, 24VAC or 12VDC power input.
* Automatically connects to Avigilon Control Center (ACC server).
* Rack mount kit allows 3x Encoders in 1U of rack space.
Mounting Option

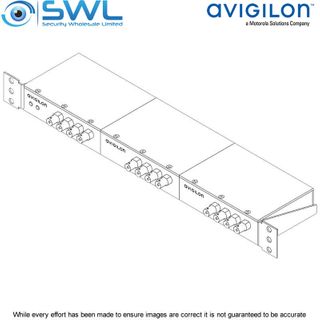

* ENC-BRK1U Avigilon 1U Rack Mount Bracket for three Encoders. 48028
