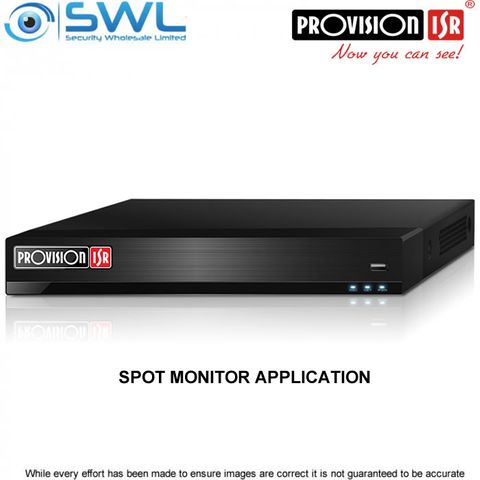

Provision-ISR NVR8-8200FA: SPOT MONITOR Application or NVR with NO PoE
Description
********** EOL Special replaced by the 33554 *********
Key Features:
* IP Video Inputs - 8CH RJ45 Over Network connection. No onboard PoE
* Max Input / Output Bandwidth - 80Mbps / 80Mbps
* Max Decoding - 1Ch - 8MP ; 4Ch - 2x 8MP + 2x 5MP
* Video Compression - H.265/ H.265+/ H.265S / H.264
* Display Outputs -HDMI (4K, 1080P), VGA (1080P, 1280x1024, 1024x768)
* Storage - 1 HDD bay (8TB Max). Not included.
* PTZ support - Via Network
* Ethernet Uplink Port -1000 Mbps (RJ-45)
* Analytic Support - DDA, Face Recognition, LPR & Fisheye support (Camera dependent)
Download the Provision-ISR 'How to Set Up Analytics from the NVR Guide HERE
* Alarm Input / Output - 8 + Depends on camera / 4CH + depends on camera
* Dimensions - W 375 x D 275 x H 50mm
* APP Support - Provision CAM2 for iOS/ Android
* APP Support 2 - IE for Windows 7/8/10, Safari for Mac OS, CMS for Windows/MAC
Download the Provision-ISR CAM2 Mobile App Guide HERE
Face Recognition:
*180 Faces per minute (All Channels) / 3 Faces per second (Single Channel)
Storage and UPS Options:
* 4Tb 46075
* 6Tb 460751
* 8Tb 460752 Max
* EATON 5E UPS 650VA/360W, 2x NZ OUTLETS 13070
* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
For full specification and capabilities please download .pdf below.
