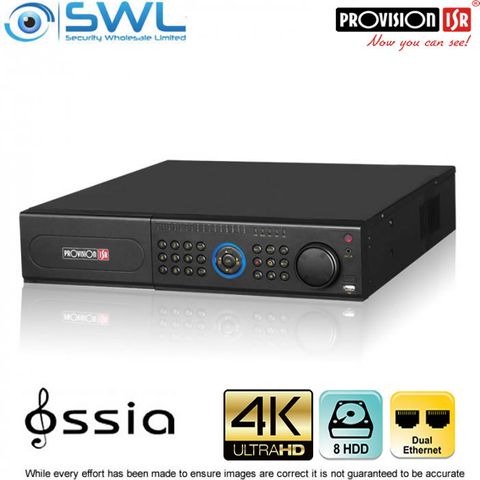

Provision-ISR NVR8-641600R (2U) 64CH 4K NVR No PoE. 2x NIC 8x HDD. No HDD Incl.
Description
************* EOL Special ***************
This NVR is capable of RAID configuration.
Key Features:
* IP Video Inputs - 64
* Onboard PoE - None, network switches required
* Max Input / Output - 320Mbps / 320Mbps
* Recording - 64CH 8MP real time
* Max Decoding - 1CH@8Mp, 4CH 2@8Mp + 2@5Mp, 9/16 1Mp, 64CH D1
* Video Compression - H.265/ H.265+/ H.265S/ H.264
* Display Outputs - 1x HDMI (4K), 1x HDMI, 1x VGA output
* Storage - 8x HDD bays, max capacity 8Tb each (not included)
* RAID - 0/ 1/ 5/ 6/ 10 supported
* Ethernet Port - 2x NIC 1000Mbps
* Analytic Support - DDA, LPR & Fish-Eye Support (Camera dependent)
- Download the Provision-ISR How to Setup Analytics from the NVR Guide HERE
* Alarm Input / Output - 8CH input, 4CH output
* Audio Input / Output - 1CH in / out depending on camera input/ output
* Power - AC100-240V
* Dimensions - W430x D445x H97mm
* Supplied with rack mount tabs and screws
* APP Support - Provision CAM2 for iOS/ Android
- Download the Provision-ISR CAM2 Mobile App Guide HERE
Storage & UPS Options
* 4Tb 46075
* 6Tb 460751
* 8Tb 460752 Max
* EATON 5E UPS 650VA/360W, 2x NZ OUTLETS 13070
* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
For full specification and capabilities please download .pdf below.
