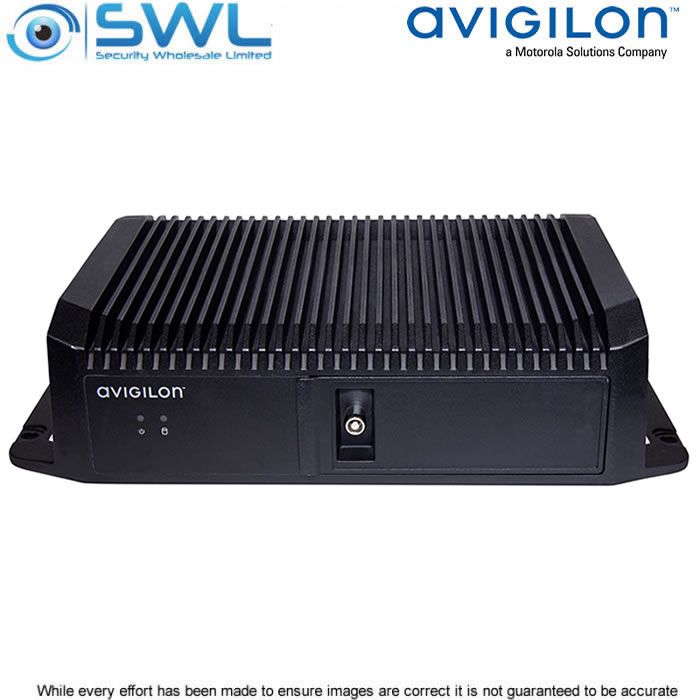

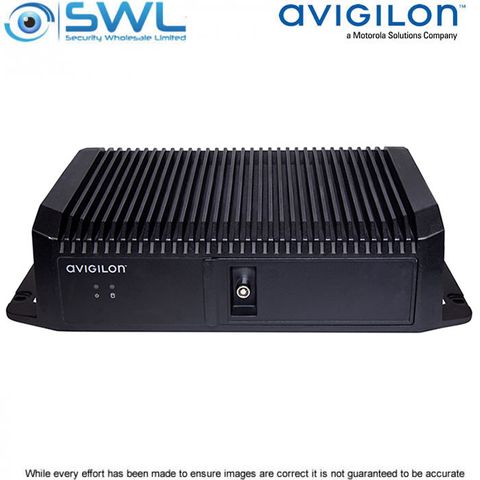

Avigilon VMA-RPA-RGD-8P2: 8-Port PoE ES Rugged Appliance 2Tb Storage
Description
Avigilon VMA-RPA-RGD-8P2: 8-Port PoE ES Rugged Appliance 2Tb Storage
(Power Supply & Licences Not Included)
The Avigilon Control Center (ACC) ES Rugged Appliance is purpose-built to meet challenges commonly faced in city security, critical infrastructure & temporary security applications.
The ACC ES Rugged Appliance incorporates a fan-less design, solid-state storage and an 8-port PoE switch, all packaged in a heavy-duty enclosure. As a result, it is designed to provide a reliable edge solution that is suited for harsh environmental conditions such as extreme temperatures, without requiring the addition of expensive air conditioning and/or heating systems.
ANALYTICS
This Appliance is capable of integrating/ overlaying Avigilon's analytic rules with footage provided by 3rd party, non-analytic cameras meeting certain minimum Megapixel and ONVIF requirements. A total 'budget' applies to connected cameras as per specification sheet (under 'Supported Video Analytics Features).
SYSTEM
* Control Center Edition - ACC 7 Enterprise compatible, not included.
* SSD Storage - 1 x 2.5” SSD 2Tb
* Recording Rate - 130 Mbps
* Stream Out Rate - 50 Mbps
* PoE+ Ports - 8 x 10/100 Mbps
* Total PoE Budget - 60 W
* Uplink - 2 x 1 GbE
* External I/O Terminals - 6 x Isolated Digital Inputs, 4 x Dry Contact Outputs
MECHANICAL
* Dimensions - (LxWxH) 172.21 x 314 x 76.02mm
* Weight - 4.2 Kg (unit)
* Mounting - Surface mount or DIN rail options Included
ELECTRICAL
* System Power - Input 9-32VDC (see below)
* Power Consumption - 100W maximum
ENVIRONMENTAL
* Operating Temperature -30° C to 70° C
* Storage Temperature -40° C to 85° C
* Humidity 95% relative humidity @40° C (non-condensing)
* Vibration MIL-STD-810G (vibration)
* EN 60721-3-5M3 (vibration + shock)
CERTIFICATIONS
* Certifications/Directives UL, cUL, CE, RCM
* Safety UL 60950-1, CSA 60950-1, IEC/EN 60950-1*
* Electromagnetic Emissions (1) FCC Part 15 Subpart B Class A, IC ICES-003 Class A,
* Electromagnetic Emissions (2) EN 55032 Class A, EN 61000-6-4, EN 61000-3-2, EN 61000-3-3
* Electromagnetic Immunity EN 55035, EN 61000-6-2
* UL/CSA/IEC/EN 60950-1 certified to 40C ambient
POWER SUPPLIES
* DINPS-240W-RPA-RGD-8P 47738
* PS-220W-RPA-RGD-8P-AU 47739
For in depth product details see specification sheet below.
